Warehouses with rooms, docks and outdoor approaches
Camera kit
From $1,079
Starting configuration24 cameras
QuarkView · 7932K-2-PoE216-12-DM27SP-605GP-AI-80N-CP
01 / 04
24-camera system reference; recording drive selected separately
| Camera resolution | 8MP / 3840 × 2160 |
|---|---|
| Recorder channels | 32 |
| Camera choices | 24: 12 indoor + 12 outdoor; 32: 16 indoor + 16 outdoor |
| Camera models | DM27SP and 605GP |
| Connection | Wired PoE system |
| Night modes | Infrared, warning-light and full-colour modes |
| Audio | Two-way microphone and speaker |
| Recorder output | 4K HDMI or VGA |
Listed packages are price references. Other camera quantities and storage requirements can be discussed in your quote.
| Model | 7932K-2-PoE216-12-DM27SP-605GP-AI-80N-CP |
|---|---|
| Listed storage configurations | No HDD or 4TB |

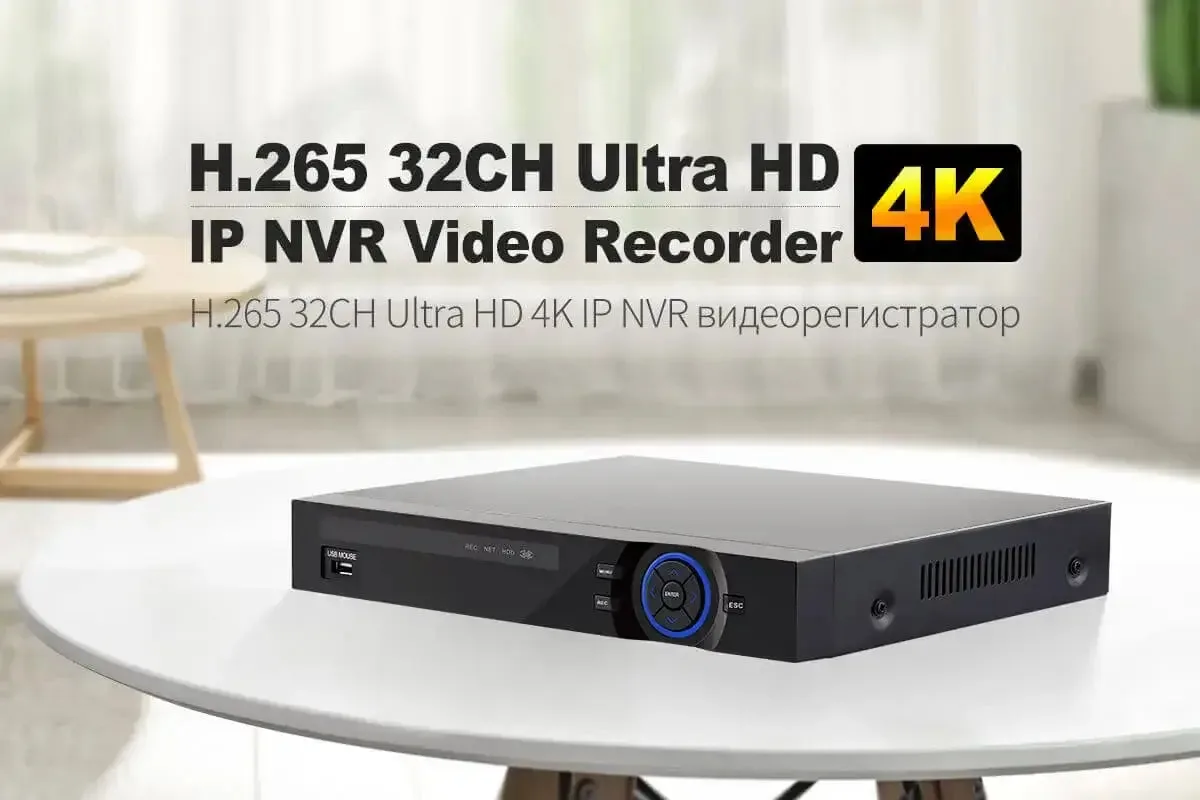

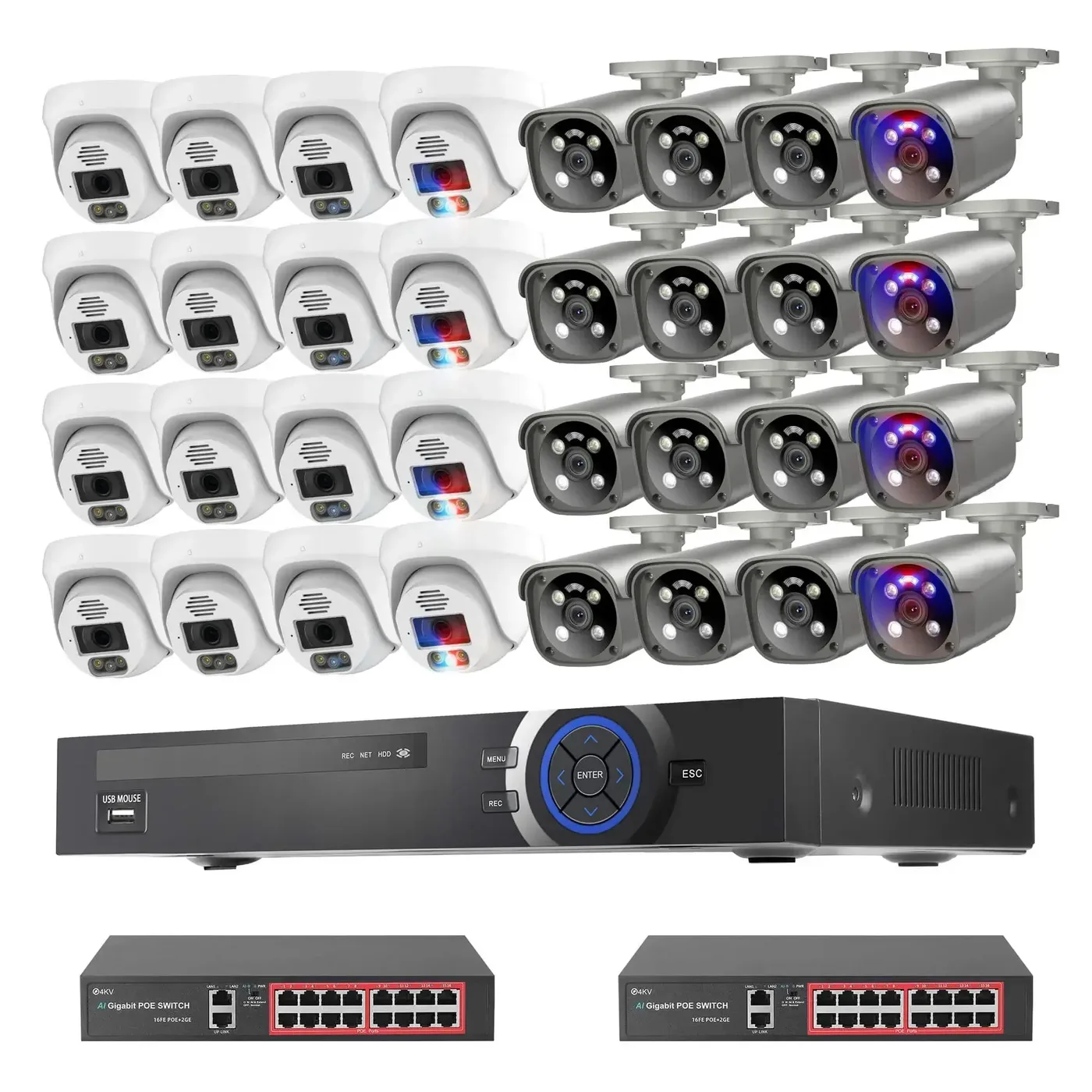

Choose twenty-four cameras for twelve indoor and twelve outdoor positions, or thirty-two for sixteen of each. The NVR supports a 32-channel layout. Powered camera connections come from the PoE equipment in the approved configuration; camera count, channels and powered ports are separate capacities.
Human and face-event recording functions help find relevant activity when the cameras supply those events. White illumination supports colour night viewing, while infrared supports the alternative night mode. Label channels by area so playback follows the same site drawing.
Group camera cables by site area and route switch uplinks to the recorder network. Name each view, initialise the selected recording drive and set the recording schedule. The QuarkView installation and storage guides below help plan the powered connections and recording load.
Installer requirements · OEM requirements · Request this configuration
QuarkView 32-Camera 8MP 605GP PoE System with 32CH Recorder · QuarkView 32-Camera 5MP 605GP PoE System
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
No. The smaller option supplies twenty-four cameras: twelve indoor and twelve outdoor.
32CH describes recording channels. It does not specify the number of powered ports on the recorder.
No. Use the sum of camera bitrates and recording hours to size the retention window.
Compare our best PoE security camera system picks and specifications
Start with 7932K-2-PoE216-12-DM27SP-605GP-AI-80N-CP and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
Choose a listed package or ask about a project configuration.
