Multi-building outdoor approaches
Camera kit
$1,660
QuarkView · 7936K-2-PoE216-32-605GP-AI-80N
01 / 02
32-camera system reference; recording drive selected separately

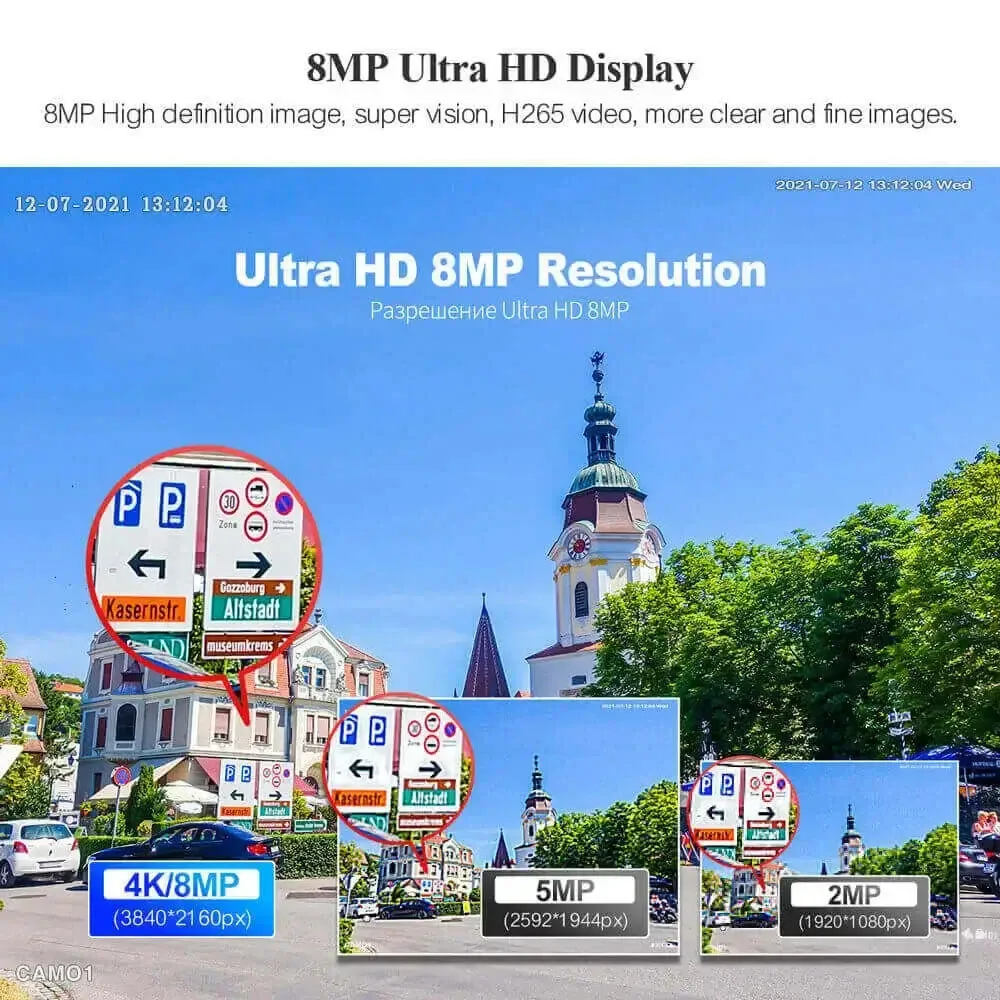

| Camera resolution | 8MP / 3840 × 2160 |
|---|---|
| Recorder channels | 32 |
| Supplied cameras | 32 |
| Connection | Wired PoE system |

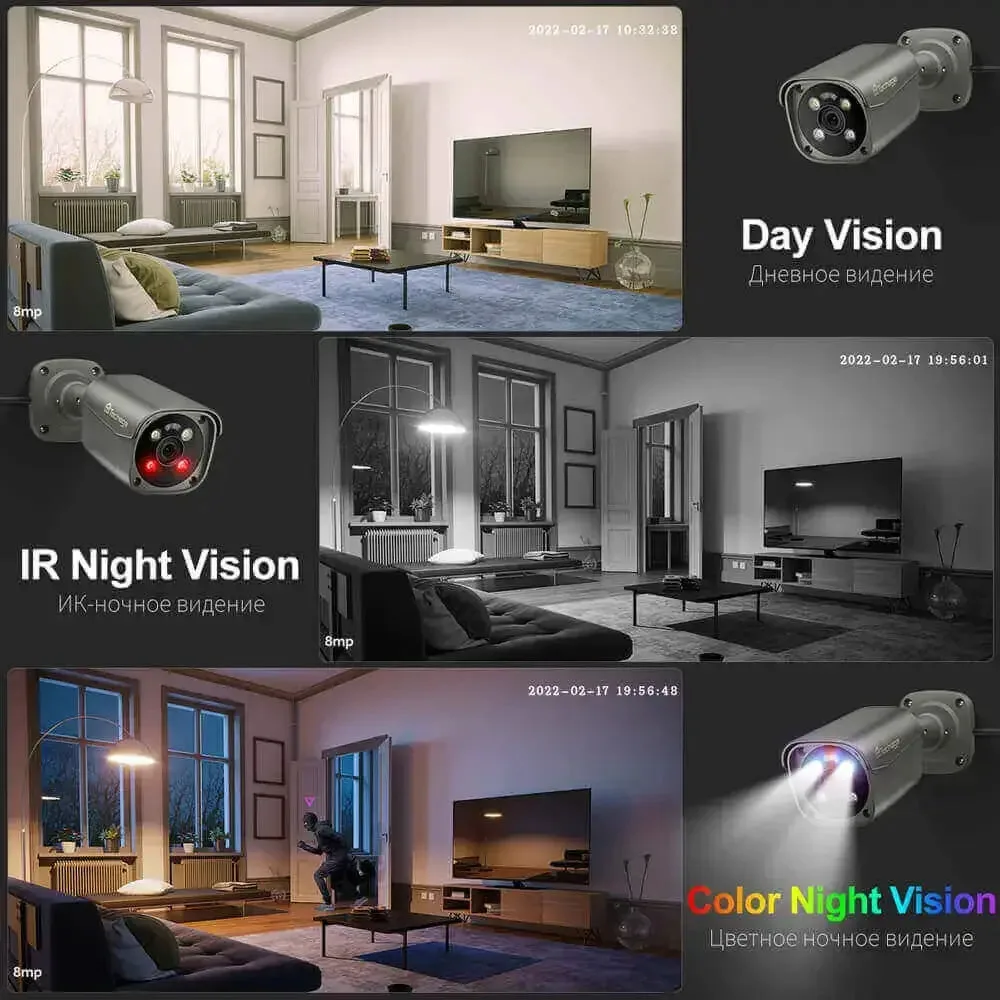

| Night modes | Infrared, warning-light and colour |
| Audio | Two-way microphone and speaker |

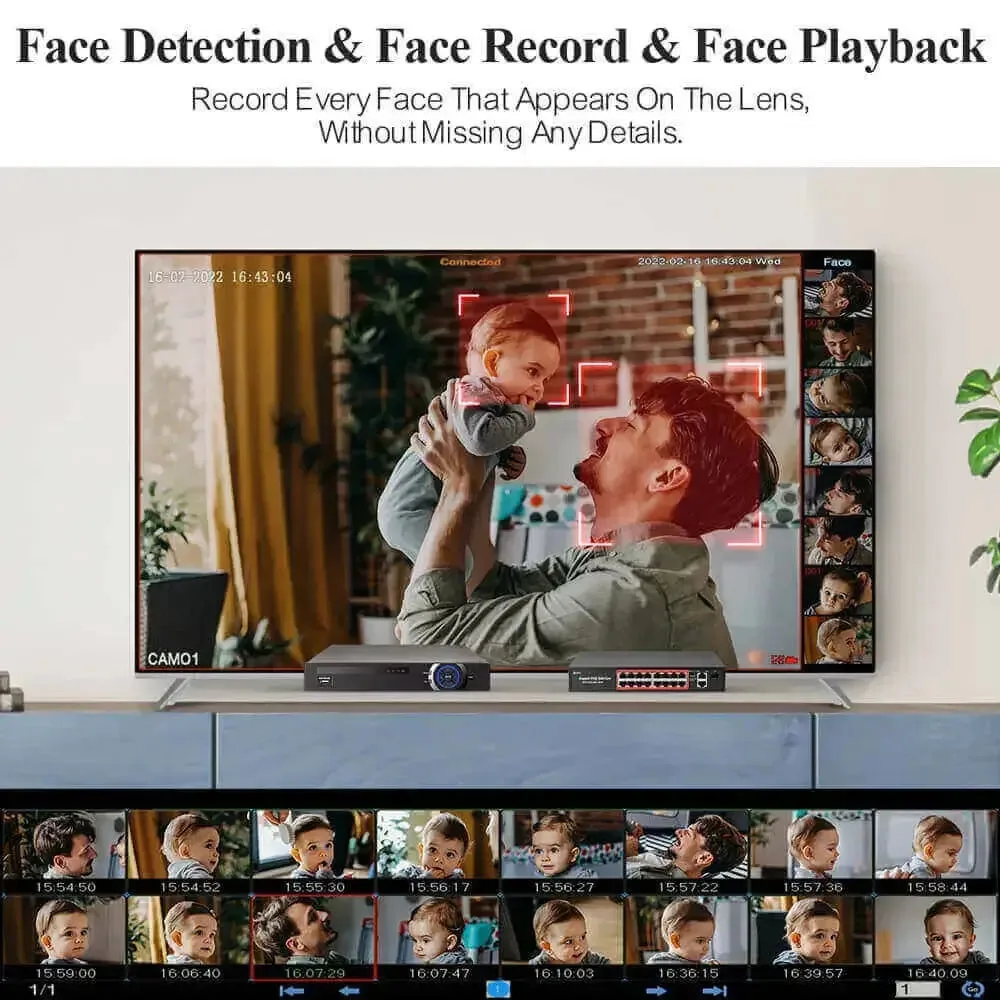

| Recorder events | Face/human/motion with matching camera support |

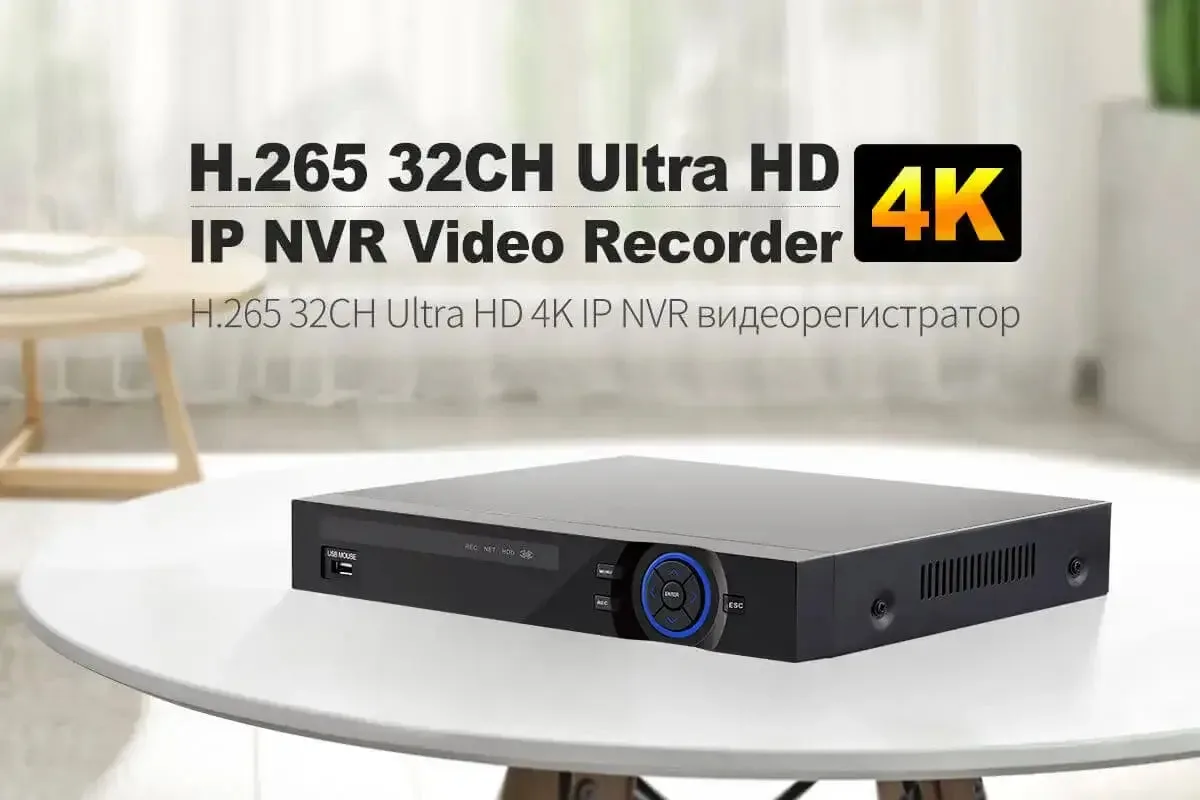

| Recorder output | 4K HDMI or VGA |
Listed packages are price references. Other camera quantities and storage requirements can be discussed in your quote.
| Model | 7936K-2-PoE216-32-605GP-AI-80N |
|---|
This listing specifies thirty-two supplied cameras as well as a 32-channel recorder. Group positions by building or zone and name channels accordingly. Connect each group through the PoE network arrangement specified for the site.
The cameras provide microphone and speaker audio with visible warning and night-lighting modes. The recorder lists human and face-event recording with matching camera support. Choose the local recording drive from the agreed configuration and set retention from the actual stream load.
Group camera cables by site area and route switch uplinks to the recorder network. Name each view, initialise the selected recording drive and set the recording schedule. The QuarkView installation and storage guides below help plan the powered connections and recording load.
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
Both apply here: thirty-two supplied cameras and a 32-channel recorder. They remain different capacities.
Add the average bitrates of the cameras and choose the recording hours and retention period in the storage calculator.
No. Powered ports belong to the actual PoE hardware and network arrangement.
Start with 7936K-2-PoE216-32-605GP-AI-80N and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
Choose a listed package or ask about a project configuration.
