A wider scene and a closer view
The PT825D uses two lenses for near and far viewing. Each lens is labelled 4MP. Plan the views around an entrance and its approach rather than treating the combined sensor count as one recorded 4K stream.
QuarkView 32CH PoE System with PT825D Dual-Lens Cameras
Multi-area warehouse and yard planning
Camera kit
- Included cameras
- 16
- Recorder channels
- 32
- PoE Ethernet connection
- Human detection
- Two-way audio
$999
USD
QuarkView · XM-7932K-16-PT825D-80P-CP
01 / 04
Camera reference; system quantity and recording drive are selected separately
Specifications
| Camera resolution | Two lenses labelled 4MP each; 8MP combined sensor count |
|---|---|
| NVR channels | 32 |
| Camera quantity | 16 |
| Connection | Wired PoE |
| Audio | Built-in microphone and speaker; two-way talk listed |

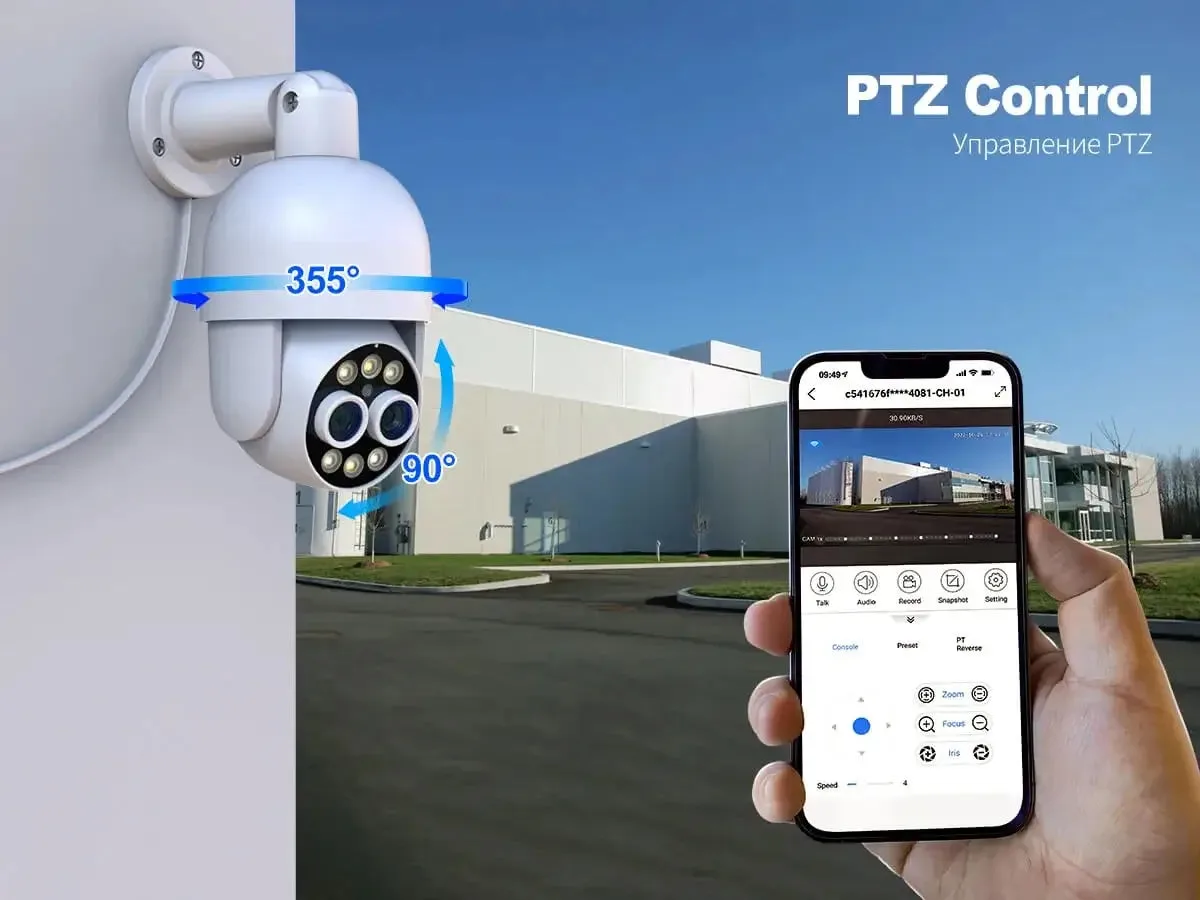

| Mechanical movement | 355° pan / 90° tilt |
Full specifications and package contents
Listed packages are price references. Other camera quantities and storage requirements can be discussed in your quote.
| Model | PT825D-80P |
|---|---|
| Listed storage configurations | No HDD |
What is included
- 16 cameras in the matching base configuration
- 32-channel recorder
- Recording drive: No HDD
Product details
Choose the night behavior and talk through the camera
A built-in microphone and speaker support two-way talk. Infrared viewing and white-light color modes serve different lighting needs. White illumination is used for the color night view; evaluate the installed view at the actual target distance.
More product details
Plan a larger wired installation around a 32-channel recorder and sixteen PT825D dual-lens cameras. The base configuration has no HDD, so choose recording storage around the stream settings and retention needed at each position.
Move the view around the scene
Remote pan and tilt changes the direction the camera faces. Human tracking and return to a home position are listed for this 32-channel configuration. Keep a fixed overview at positions that need uninterrupted coverage.
Connect power and plan the recording
Connect each camera to a suitable PoE NVR port or powered switch over Ethernet. The 32CH recorder and supplied camera quantity are separate limits. Size the drive using recorded bitrate and retention needs.
Selected configuration
- 16 cameras in the matching base configuration
- 32-channel recorder
- Recording drive: No HDD
Setup and software
iCSee handles camera setup and viewing. Camera viewing and recorder access are separate setup tasks.
Is a hard drive included in the sixteen-camera base configuration?
No. The base configuration is supplied without an HDD. Select recording storage for the required bitrate and retention period.
Practical guides
- Understand dual-lens viewing — Separate two sensors, PiP and stitched output.
- Wide angle and zoom — Compare a scene overview with closer detail.
- Camera and NVR compatibility — Check saved video, audio, controls and events individually.
- Size NVR recording storage — Calculate retention from recorded bitrate and recording mode.
Setup resources and product questions
- PT825 PoE camera family manual — English (PDF) (opens a new tab)
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
- camera: iCSee — Android (opens a new tab)
- camera: iCSee — iOS (opens a new tab)
- QuarkView setup support (opens a new tab)
Model FAQ
Does the 8MP label mean one recorded 4K image?
It describes two lenses labelled 4MP each. It does not establish the pixel dimensions of an individual recorded stream.
Is the zoom a continuous 8X optical lens?
PT825D uses separate near and far lens views. Switching views and enlarging a digital image differ from changing the focal length of a motorized optical lens; no continuous optical-zoom ratio is specified here.
Are the two pictures a stitched panorama?
Picture-in-picture places a smaller view within another view. A stitched panorama and two independent recorded channels are different layouts and are not established by a dual-view display.
Does this camera need Wi-Fi?
No. The listed PoE configuration uses Ethernet for the network connection and a compatible PoE source for power.
What do the recorder channels and camera quantity mean?
The matching base configuration has 16 cameras and a 32-channel recorder. Channel capacity is separate from supplied cameras and physical powered ports.
What storage should I select for the sixteen-camera base configuration?
The sixteen-camera base configuration is supplied without an HDD. Select a compatible drive for your target recording period, camera bitrates and daily recording hours.
Discuss samples, bulk supply or OEM requirements
Start with XM-7932K-16-PT825D-80P-CP and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
Choose a listed package or ask about a project configuration.
