Add one PT825G camera to a wired system for remote pan and tilt, human alerts and two-way talk. Select the 5MP -50P model or the separate 8MP -80P option to match the viewing position.
QuarkView PT825G PoE Camera — 5MP and 8MP Options
Single-camera replacement or expansion
Single camera
- PoE Ethernet connection
- Remote mechanical pan and tilt
- Human detection
From $48.99
USD
Starting configuration1 cameras · 5MP
QuarkView · TA-XM-PT825G-50P
01 / 06
Device exterior
Specifications
| Camera resolution | 5MP (-50P); 8MP (-80P) separate variant |
|---|---|
| Camera quantity | 1 |
| Connection | Wired PoE |
| Audio | Built-in microphone and speaker; two-way talk listed |
| Video codec | H.265 |
| PoE standard | IEEE 802.3af / 48V listed |
Full specifications and package contents
| Model | PT825G-50P |
|---|---|
| microSD storage | microSD card slot |
What is included
- One camera
- Mounting parts and setup manual
- Recorder, recording drive and Ethernet cabling selected separately
Product details
Choose the night behavior and talk through the camera
A built-in microphone and speaker support two-way talk. Infrared viewing and white-light color modes serve different lighting needs. White illumination is used for the color night view; evaluate the installed view at the actual target distance.
More product details
Aim the camera at the part that matters

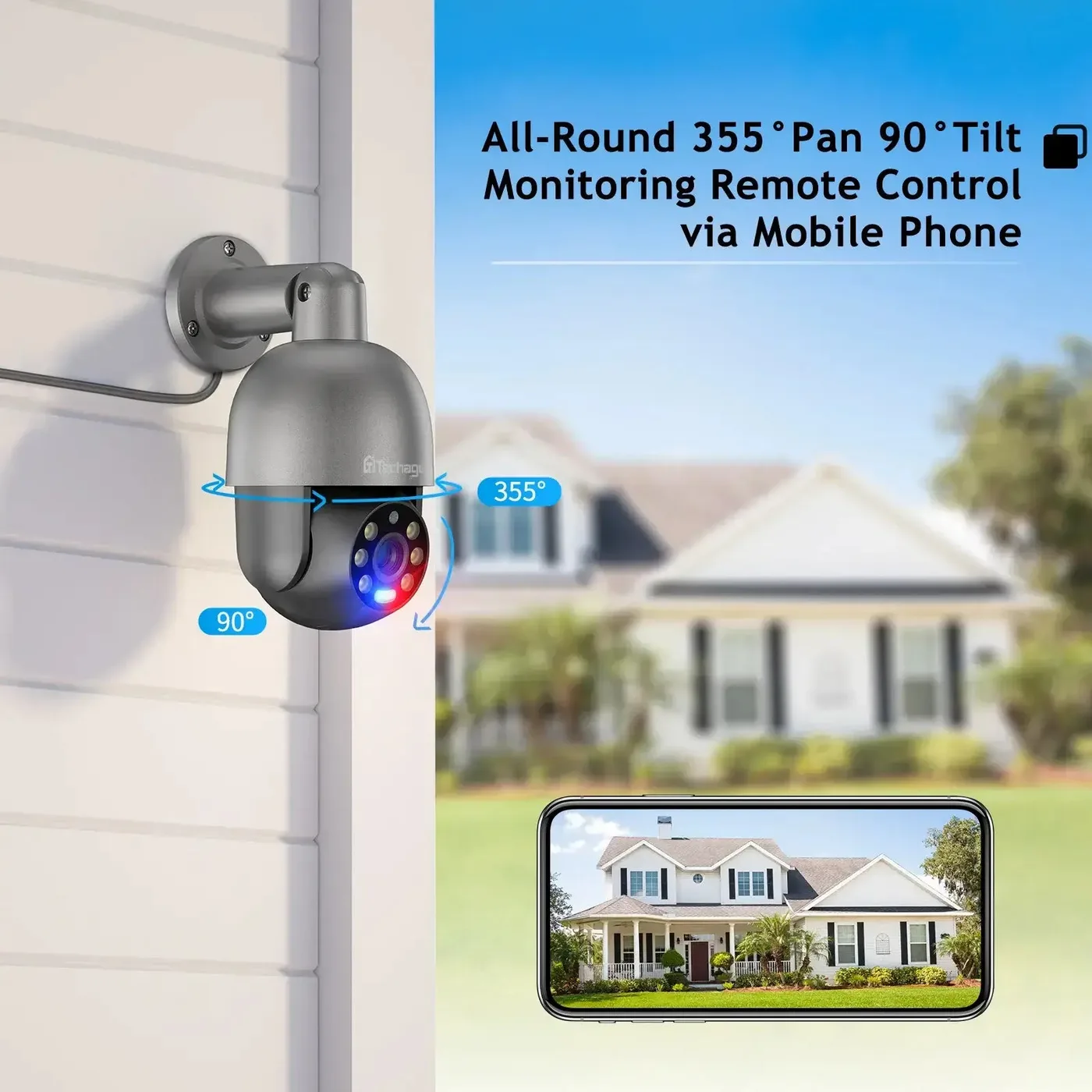

Mechanical pan and tilt lets you inspect another part of the entrance or yard. Camera movement changes direction; it does not create a stitched panoramic image or prove optical zoom.
Connect power and plan the recording

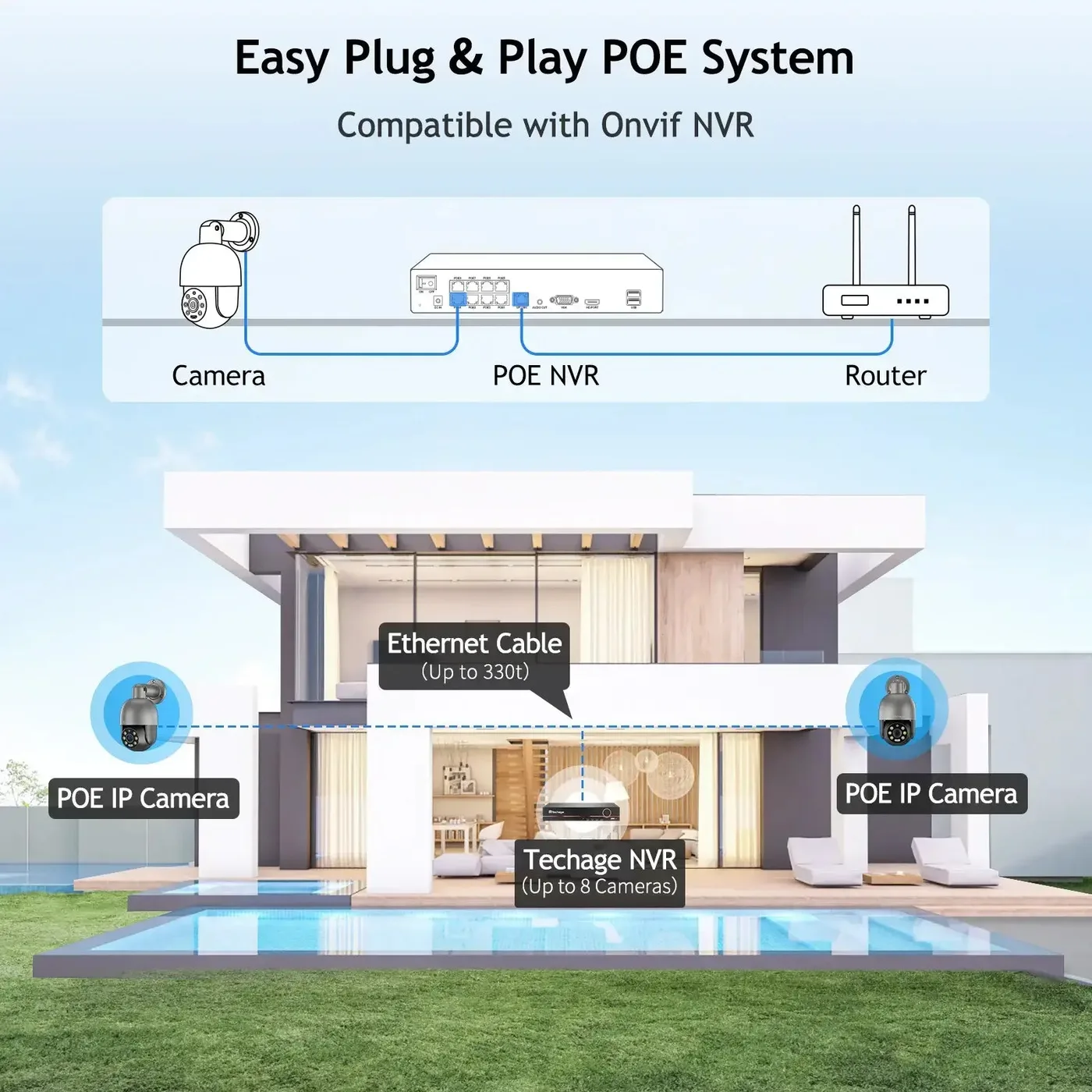

Connect each camera to a suitable PoE NVR port or powered switch over Ethernet. A microSD card provides local recording.
Selected configuration
- One camera
- Mounting parts and setup manual
- Recorder, recording drive and Ethernet cabling selected separately
Setup and software
Use the setup instructions supplied with the camera to add the device and enable local playback.
Does pan and tilt mean optical zoom?
No. Pan and tilt moves the camera direction. An optical zoom lens changes focal length; no optical zoom ratio is specified for this model.
Practical guides
- PTZ controls and coverage — Separate mechanical movement, presets and continuous coverage.
- Choose the lens view — Match scene width and target distance to the viewing task.
- Outdoor camera installation — Place the mount and protect network and power connections.
- Choose the lens view — Match scene width and target distance to the viewing task.
Setup resources and product questions
- PT825 PoE camera family manual — English (PDF) (opens a new tab)
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
- QuarkView setup support (opens a new tab)
Model FAQ
How do pan, tilt and optical zoom differ?
Pan and tilt change the viewing direction; optical zoom changes lens focal length. This model has no specified optical zoom ratio.
Can one movable camera cover every direction continuously?
It records the direction it faces. Add fixed overview cameras where an entrance or working area must remain visible throughout movement.
Does this camera need Wi-Fi?
No. The listed PoE configuration uses Ethernet for the network connection and a compatible PoE source for power.
How do I set up viewing and local recording?
The PoE PTZ family setup guide uses iCSee. A card slot is listed for local recording. The linked setup guide explains device and playback controls.
Discuss samples, bulk supply or OEM requirements
Start with TA-XM-PT825G-50P and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
