An active PoE switch for up to sixteen camera power connections, with separate network uplinks.

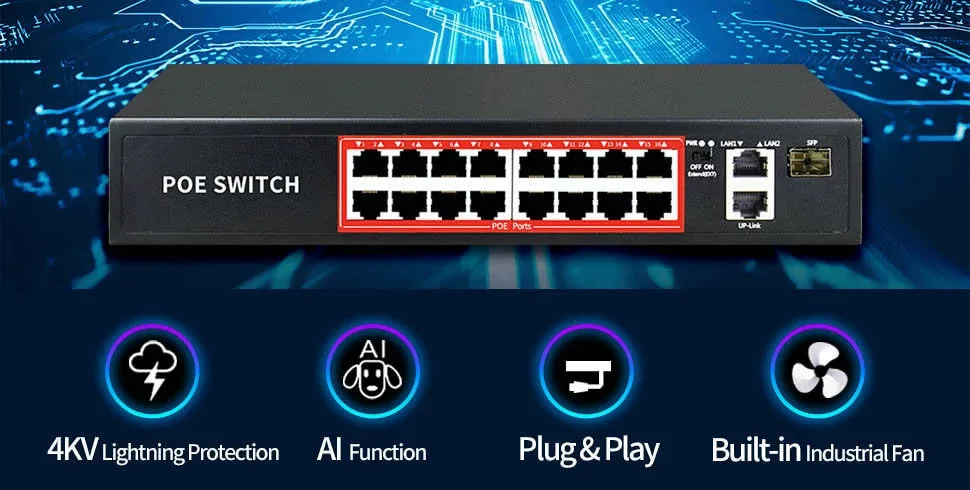

QuarkView POE216 16-Port PoE Switch
Compatible installation or replacement
Accessory
- PoE standard: IEEE 802.3af/at
- PoE connections: 16
- Power supply: Built in
$79.99
USD
QuarkView · YN-POE216
01 / 05

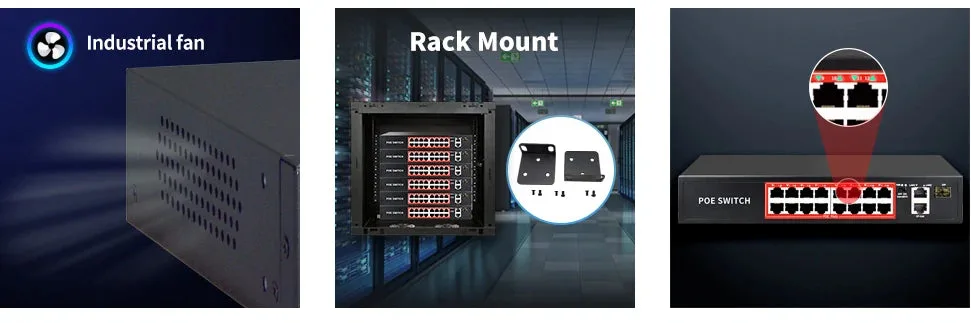

Visible connectors and ports
Specifications
| PoE standard | IEEE 802.3af/at |
|---|---|
| PoE connections | 16 |
| Power supply | Built in |
Full specifications and package contents
| Model | YN-POE216 |
|---|
What is included
- One switch in the selected configuration.
- AC lead, rack parts and manual availability must be specified in the QuarkView packing list.
Product details
More product details
- For a 32-camera design using two 16-port switches, calculate the power and uplink load of each switch separately.
- Sum camera maximum consumption, including night lights, then compare it with a documented PoE budget.

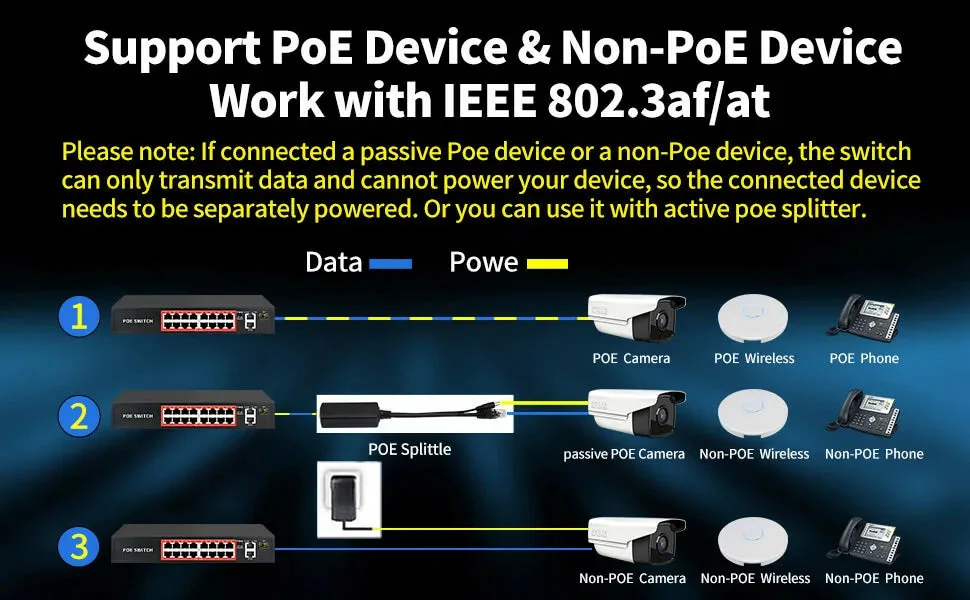

- Passive PoE and non-PoE devices are listed for data only unless powered separately or through a suitable active splitter.
Model questions
Plan switch power and uplinks · Calculate camera bandwidth · Match DC and PoE power · Install and commission a wired system
Setup resources and product questions
Model FAQ
Are all ports Gigabit?
The PoE port and uplink speeds still require confirmation for the supplied revision.
Can it power passive PoE cameras directly?
Passive PoE and non-PoE devices need a separate suitable power path; do not assume direct power compatibility.
Discuss samples, bulk supply or OEM requirements
Start with YN-POE216 and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
