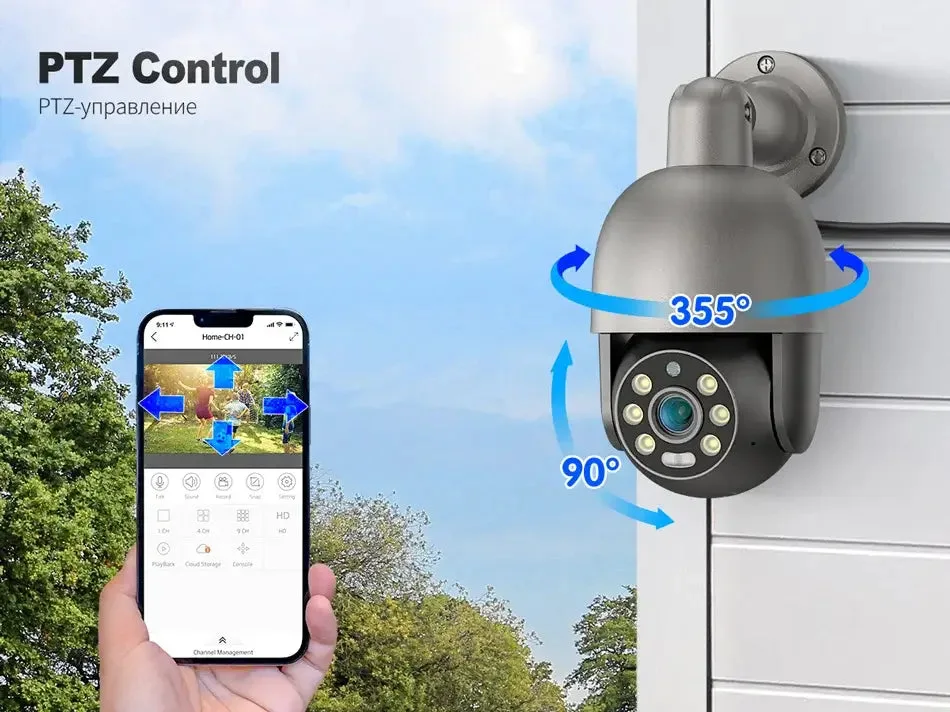

Aim the camera at the part that matters
Mechanical pan and tilt lets you inspect another part of the entrance or yard. Camera movement changes direction; it does not create a stitched panoramic image or prove optical zoom.
QuarkView PT825G 8MP PoE System with 8CH NVR
Several outdoor entrances
Camera kit
- Included cameras
- 4 / 8
- Recorder channels
- 8
- PoE Ethernet connection
- Remote mechanical pan and tilt
- Human detection
From $339
USD
Starting configuration4 cameras
QuarkView · TA-6708KR-4-PT825G-80P
01 / 06
4-camera system reference; recording drive selected separately
Specifications
| Camera resolution | 8MP selected camera option |
|---|---|
| NVR channels | 8 |
| Camera quantity | 4 / 8 options |
| Connection | Wired PoE |
| Audio | Built-in microphone and speaker; two-way talk listed |
Full specifications and package contents
Listed packages are price references. Other camera quantities and storage requirements can be discussed in your quote.
| Model | PT825G-80P |
|---|---|
| Listed storage configurations | No HDD / 1TB / 3TB |
What is included
- Selected 4- or 8-camera configuration
- 8-channel recorder
- Recording drive: No HDD / 1TB / 3TB
- NVR power supply, USB mouse and setup manual listed
Product details
Choose the night behavior and talk through the camera
A built-in microphone and speaker support two-way talk. Infrared viewing and white-light color modes serve different lighting needs. White illumination is used for the color night view; evaluate the installed view at the actual target distance.
More product details
Build a wired layout with four or eight PT825G 8MP cameras and an 8-channel recorder. Pan control helps inspect entrances and yards; the camera quantity and recording drive are separate choices.
Connect power and plan the recording
Connect each camera to a suitable PoE NVR port or powered switch over Ethernet. The 8CH recorder and supplied camera quantity are separate limits. Size the drive using recorded bitrate and retention needs.
Selected configuration
- Selected 4- or 8-camera configuration
- 8-channel recorder
- Recording drive: No HDD / 1TB / 3TB
- NVR power supply, USB mouse and setup manual listed
Setup and software
iCSee handles camera setup and viewing. The recorder manual uses XMEye Pro for NVR access. Camera and recorder connections are separate entries.
Practical guides
- PTZ controls and coverage — Separate mechanical movement, presets and continuous coverage.
- Choose the lens view — Match scene width and target distance to the viewing task.
- Size NVR recording storage — Calculate retention from recorded bitrate and recording mode.
- Install a PoE camera system — Plan protected cable entries and a powered network connection.
Setup resources and product questions
- PT825 PoE camera family manual — English (PDF) (opens a new tab)
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
- PoE system family manual — English (PDF) (opens a new tab)
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
- PoE recorder family manual — English (PDF) (opens a new tab)
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
- recorder: XMEye Pro — Android (opens a new tab)
- recorder: XMEye Pro — iOS (opens a new tab)
- camera: iCSee — Android (opens a new tab)
- camera: iCSee — iOS (opens a new tab)
- QuarkView setup support (opens a new tab)
Model FAQ
Does pan and tilt mean optical zoom?
No. Pan and tilt moves the camera direction. An optical zoom lens changes focal length; no optical zoom ratio is specified for this model.
Can one movable camera cover every direction continuously?
It records the direction it faces. Add fixed overview cameras where an entrance or working area must remain visible throughout movement.
Does this camera need Wi-Fi?
No. The listed PoE configuration uses Ethernet for the network connection and a compatible PoE source for power.
What do the recorder channels and camera quantity mean?
The matching base configuration has 4 cameras and a 8-channel recorder. Channel capacity is separate from supplied cameras and physical powered ports.
How long will the hard drive record?
Recording time depends on total recorded bitrate, recording mode and usable drive capacity. Use the storage calculator with your chosen stream settings.
Discuss samples, bulk supply or OEM requirements
Start with TA-6708KR-4-PT825G-80P and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
Choose a listed package or ask about a project configuration.
