Four entrances with near and far viewing tasks
Camera kit
From $299
Starting configuration4 cameras
QuarkView · 6708KR-4-PT825D-80P-CP1
01 / 06
Camera reference; system quantity and recording drive are selected separately
| Camera resolution | Two lenses labelled 4MP each; 8MP combined sensor count |
|---|---|
| NVR channels | 8 |
| Camera quantity | 4 |
| Connection | Wired PoE |
| Weather rating | IP66 listed |
| Audio | Built-in microphone and speaker; two-way talk listed |
| microSD support | Up to 128GB |
| Video codec | H.265 |
Listed packages are price references. Other camera quantities and storage requirements can be discussed in your quote.
| Model | PT825D-80P |
|---|---|
| Listed storage configurations | No HDD / 3TB / 4TB |
| ONVIF | Protocol support listed; feature availability depends on recorder and firmware |
The PT825D uses two lenses for near and far viewing with picture-in-picture display. Each lens is labelled 4MP. Plan the views around an entrance and its approach rather than treating the combined sensor count as one recorded 4K stream.
A built-in microphone and speaker support two-way talk. Infrared viewing and white-light color modes serve different lighting needs. White illumination is used for the color night view; evaluate the installed view at the actual target distance.

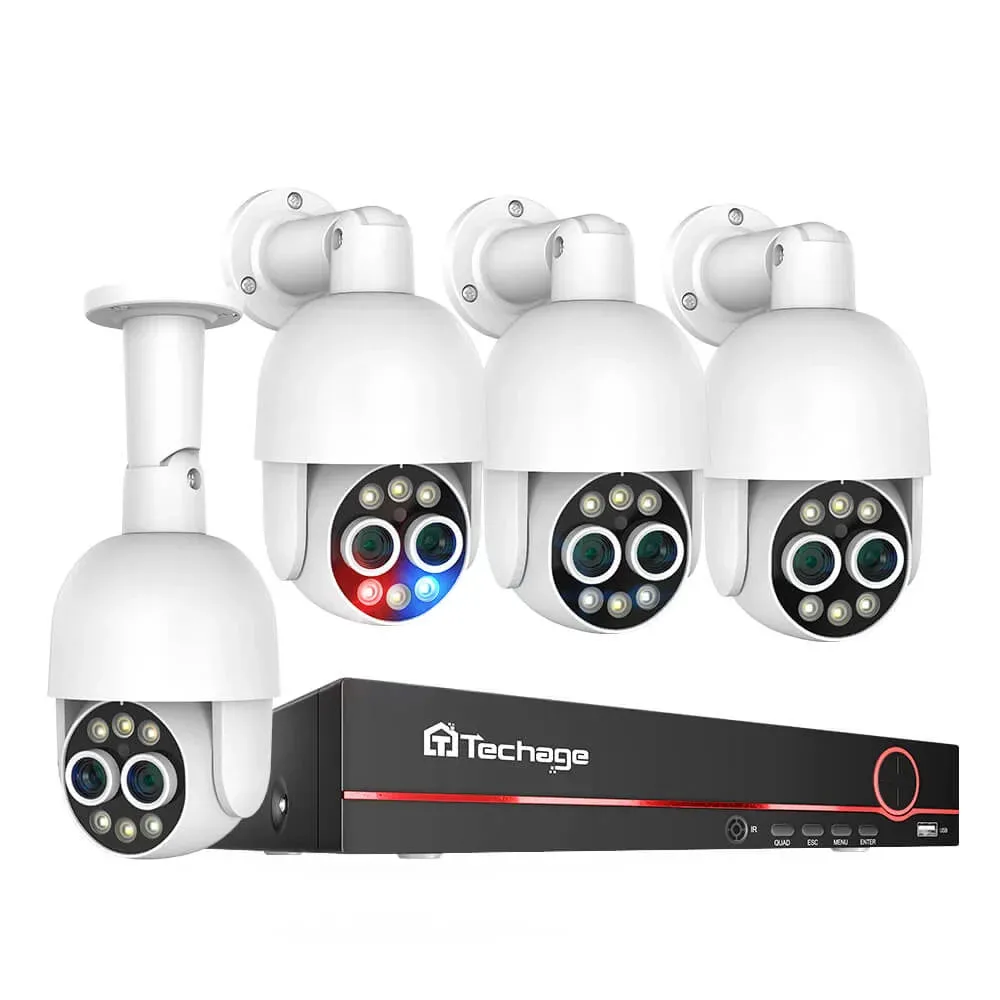

Pair four PT825D dual-lens cameras with a recorder for near and far viewing at several positions. Select no HDD, 3TB or 4TB storage while keeping the two-lens sensor count separate from recorded output resolution.
Remote pan and tilt changes the direction the camera faces. Human tracking is listed for the camera family. Keep a fixed overview at positions that need uninterrupted coverage.
Connect each camera to a suitable PoE NVR port or powered switch over Ethernet. The 8CH recorder and supplied camera quantity are separate limits. Size the drive using recorded bitrate and retention needs.
iCSee handles camera setup and viewing. The recorder manual uses XMEye Pro for NVR access. Camera and recorder connections are separate entries.
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
It describes two lenses labelled 4MP each. It does not establish the pixel dimensions of an individual recorded stream.
PT825D uses separate near and far lens views. Switching views and enlarging a digital image differ from changing the focal length of a motorized optical lens; no continuous optical-zoom ratio is specified here.
Picture-in-picture places a smaller view within another view. A stitched panorama and two independent recorded channels are different layouts and are not established by a dual-view display.
No. The listed PoE configuration uses Ethernet for the network connection and a compatible PoE source for power.
The matching base configuration has 4 cameras and a 8-channel recorder. Channel capacity is separate from supplied cameras and physical powered ports.
Recording time depends on total recorded bitrate, recording mode and usable drive capacity. Use the storage calculator with your chosen stream settings.
Test saved video, audio, pan/tilt control and the required events independently. Protocol support alone does not establish every function with a third-party recorder.
Start with 6708KR-4-PT825D-80P-CP1 and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
Choose a listed package or ask about a project configuration.
