A 12V DC, 1A camera adapter with a 3m lead and 5.5/2.1mm barrel connector in the AU plug option.

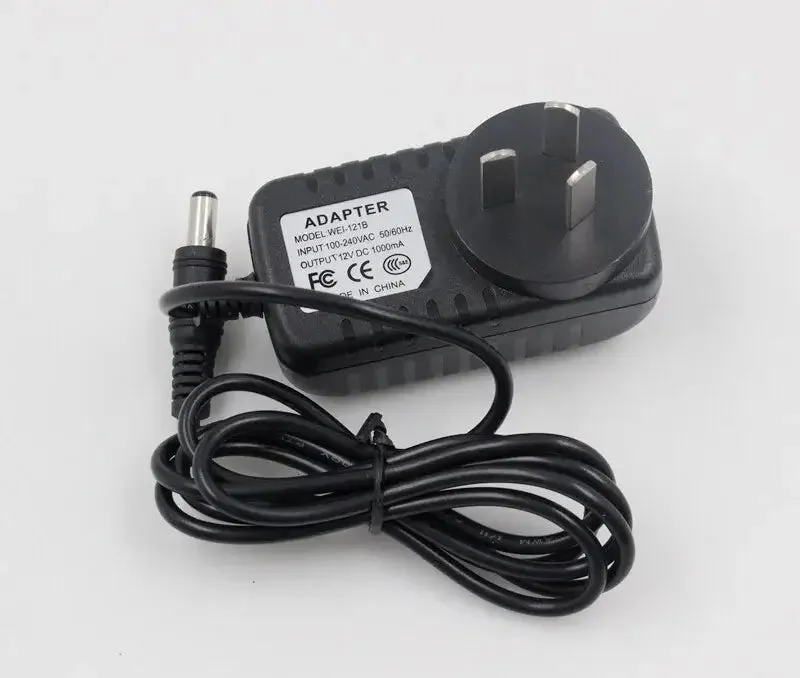

QuarkView 12V1A Camera Power Adapter — AU Plug
Compatible installation or replacement
Accessory
- AC input: 100–240V, 50/60 Hz
- DC output: 12V, 1A
- DC plug: 5.5mm outer /2.1mm inner
$9.90
USD
QuarkView · YN-12V1A-3M-AU
01 / 01
Device multi-angle reference — illustration
Specifications
| AC input | 100–240V, 50/60 Hz |
|---|---|
| DC output | 12V, 1A |
| DC plug | 5.5mm outer /2.1mm inner |
| Lead length | 3m |
| Body dimensions | 75×78×26mm |
| Mains option | AU plug |
Full specifications and package contents
| Model | YN-12V1A-3M-AU |
|---|
What is included
- One AU-plug 12V1A adapter with the listed 3m lead. Other plug choices are separate SKUs.
Product details
More product details
- Match the exact camera’s voltage, polarity, connector and peak current, including night illumination.
- Use 1A as the adapter’s stated current limit, not a claim that every 12V camera is suitable.
Model questions
Match DC and PoE power · Diagnose power, video and recording faults
Setup resources and product questions
Model FAQ
Does it replace a PoE power source?
No. It supplies 12V through aDC barrel connector; PoE power uses a different interface and power arrangement.
Is centre-positive polarity confirmed?
A readable polarity label or current specification is still required. Do not select polarity from connector shape.
Discuss samples, bulk supply or OEM requirements
Start with YN-12V1A-3M-AU and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
