The QuarkView K04 is a compact 1080P camera for checking a room, pet area or home entrance. It uses a powered USB connection and 2.4GHz Wi-Fi, with two-way audio and local microSD recording.
QuarkView K04 1080P Home Camera
Indoor room check-ins
Camera multipack
- Two-way audio

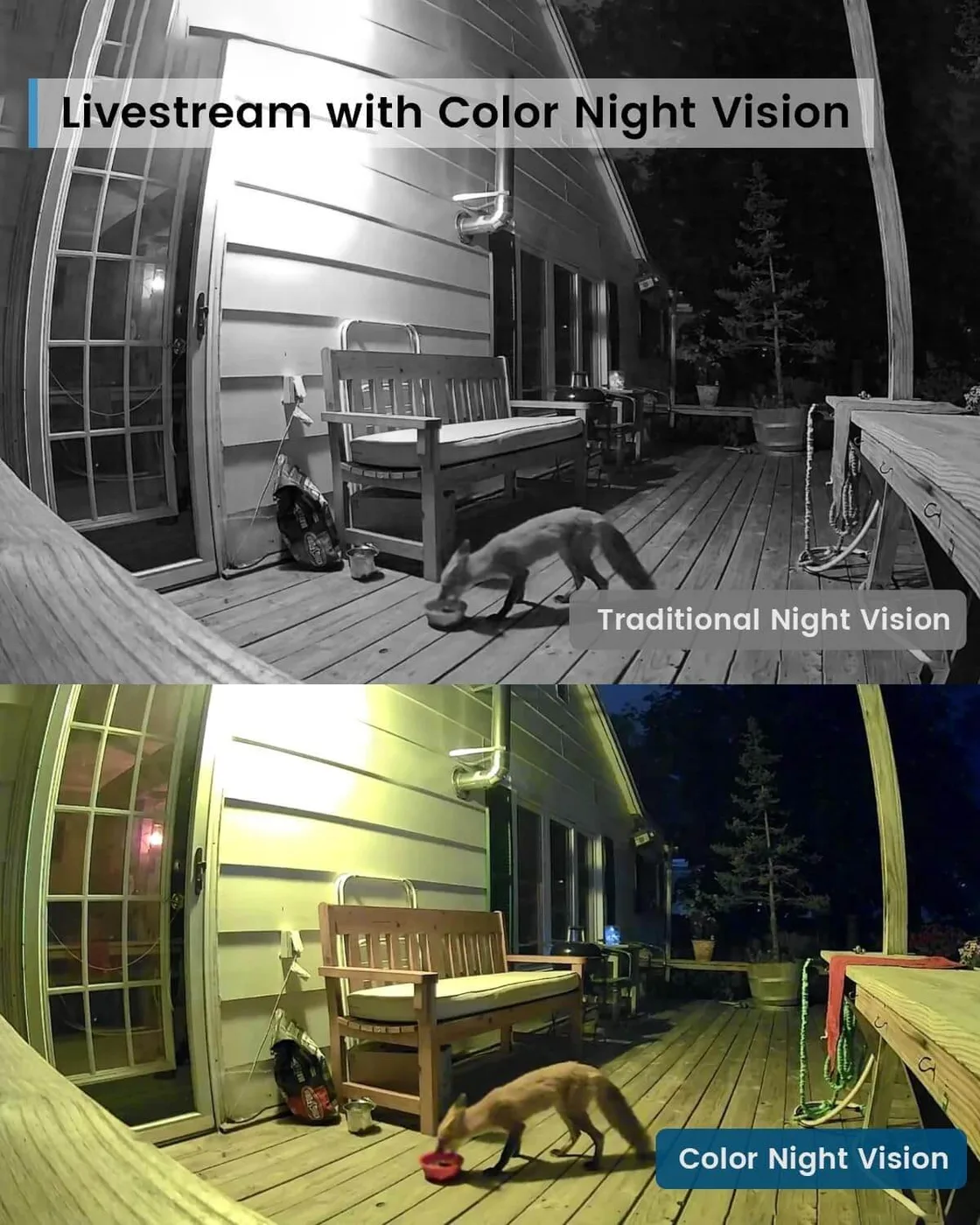

- Infrared and spotlight night viewing
- Network2.4GHz Wi-Fi, 802.11b/g/n
From $26.99
USD
Starting configuration1 cameras
QuarkView · TY-K04-20W
01 / 04
Device exterior
Specifications
| Camera resolution | 1080P |
|---|---|
| Network | 2.4GHz Wi-Fi, 802.11b/g/n |
| Audio | Two-way audio |
| Power | DC 5V / 1A; Type-C port |
| Codec | H.264 |
| Night lighting | Infrared and spotlight |
| Operating temperature | -10°C to 45°C |
Full specifications and package contents
| Model | TY-K04-20W |
|---|---|
| Local storage | microSD up to 128GB |
What is included
- One, two or three K04 cameras according to the selected quantity
- Camera mounting bracket, screw pack, USB cable, power adapter and quick-start guide
- microSD card not included
Product details
Power and maintenance
Supply DC 5V / 1A through the Type-C power connection. K04 uses a power cable; Wi-Fi access does not make it a battery camera.
More product details
Network and recording

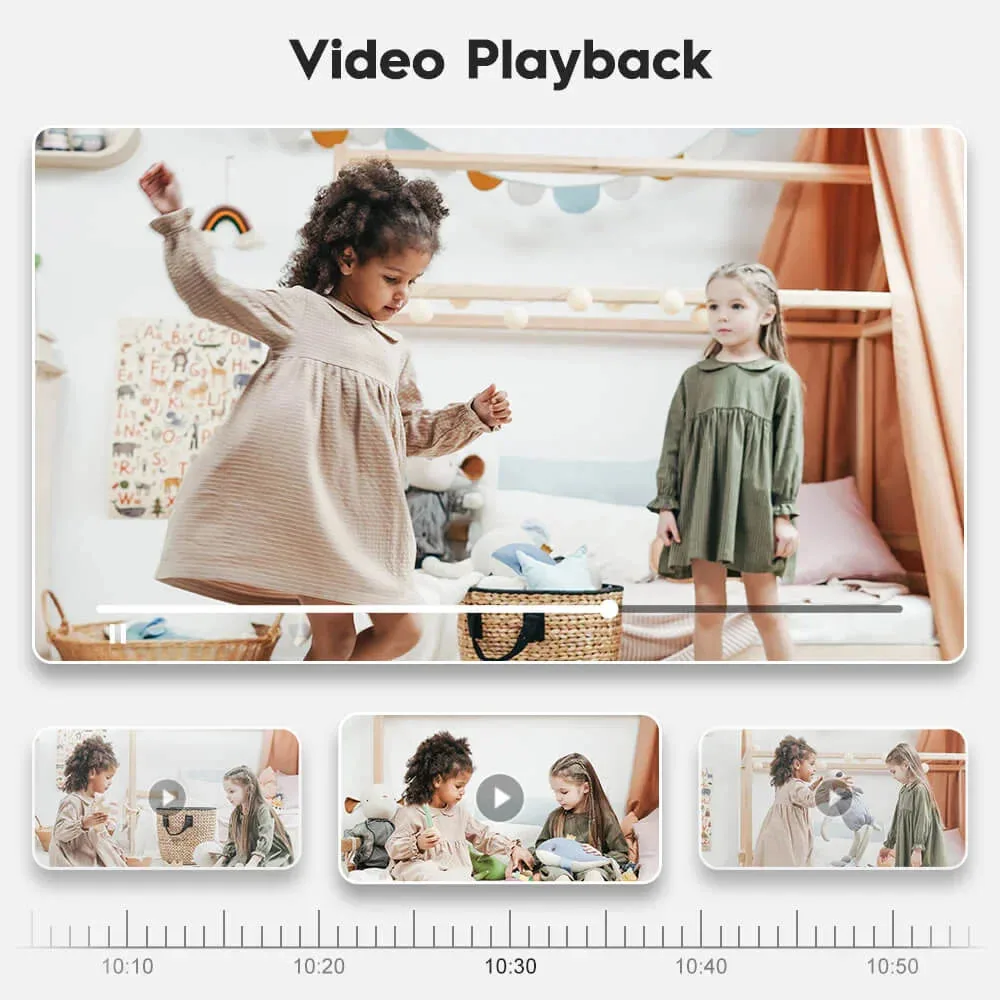

Pair on a 2.4GHz network near the router, then check the signal at the intended position. Use the app instructions supplied with the actual K04 revision. K04 supports a microSD card up to 128GB and overwrite when full. Cloud storage is optional. Select the recording settings in the app and replay a known interval after setup.
Installation and setup
Place it on a stable surface or use the supplied mounting bracket. Route the USB cable where it will not be pulled. Check live view, two-way talk and a saved clip before leaving it in place.
Practical guides
Setup resources and product questions
Model FAQ
Will K04 connect to a 5GHz-only Wi-Fi network?
The K04 guide specifies 2.4GHz Wi-Fi. Use a 2.4GHz network for pairing and operation.
Is K04 battery powered?
K04 uses DC 5V / 1A power through its Type-C connection.
What card can K04 use?
The guide lists microSD storage up to 128GB and FAT32. Save existing footage before formatting and check playback after setup.
Is K04 a substitute for direct supervision?
Use it for household check-ins. It does not replace direct supervision of a child or pet.
Discuss samples, bulk supply or OEM requirements
Start with TY-K04-20W and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
