A 2.8mm view for indoor overview
The fixed 2.8mm lens suits a broad nearby view of a room or reception area. Its useful detail depends on the target distance and framing; use the live view to position the camera before fixing the mount.
QuarkView DM13EP 5MP PoE Dome Camera with 2.8mm Lens
Indoor rooms and office reception
Camera
- Infrared night illumination
- Microphone audio recording
- DetectionFace detection listed; no identity recognition claim
$36.99
USD
QuarkView · XM-DM13EP-50-2.8
01 / 12

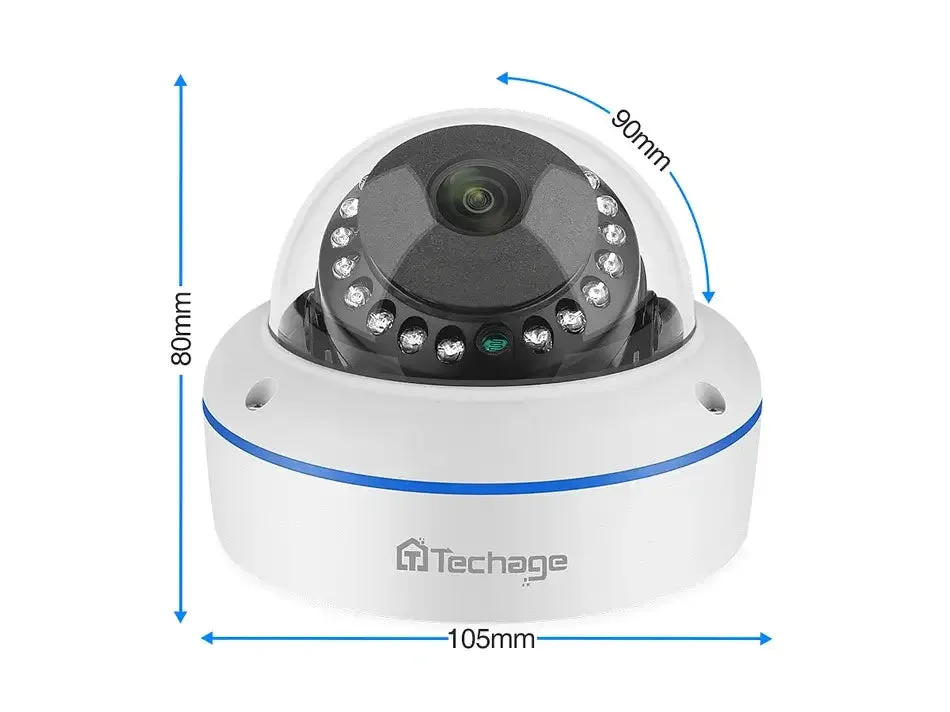

Device exterior
Specifications
| Camera resolution | 5MP / 2592 × 1944 |
|---|---|
| Connection | 48V PoE |
| Audio | Built-in microphone; audio recording |
| Detection | Face detection listed; no identity recognition claim |
| Lens | 2.8mm fixed |
| Frame rate | 15fps listed for 5MP |
| Night illumination | 15 IR LEDs; listed IR distance 15m |

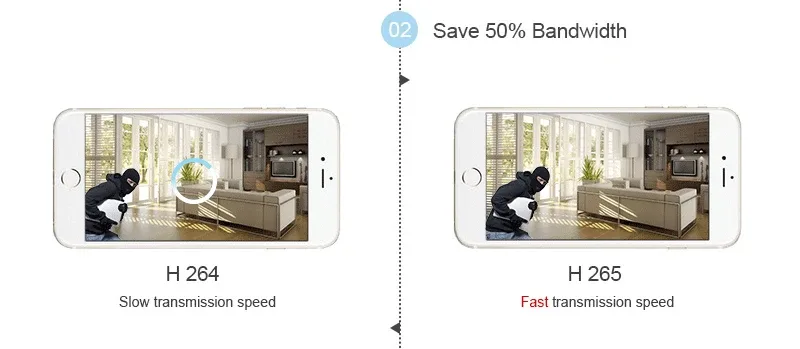

| Compression | H.265 |
Full specifications and package contents
| Model | XM-DM13EP-50-2.8 |
|---|
What is included
- 1 × 5MP dome camera in the selected 2.8mm configuration
- User manual and screw pack are listed
- Recorder and recording drive selected separately
Product details
Keep night lighting discreet
Infrared LEDs provide night illumination without a visible white floodlight. The microphone records ambient sound alongside video. Connect the camera to a compatible wired recorder for retained recordings and playback.
More product details
Installation and support

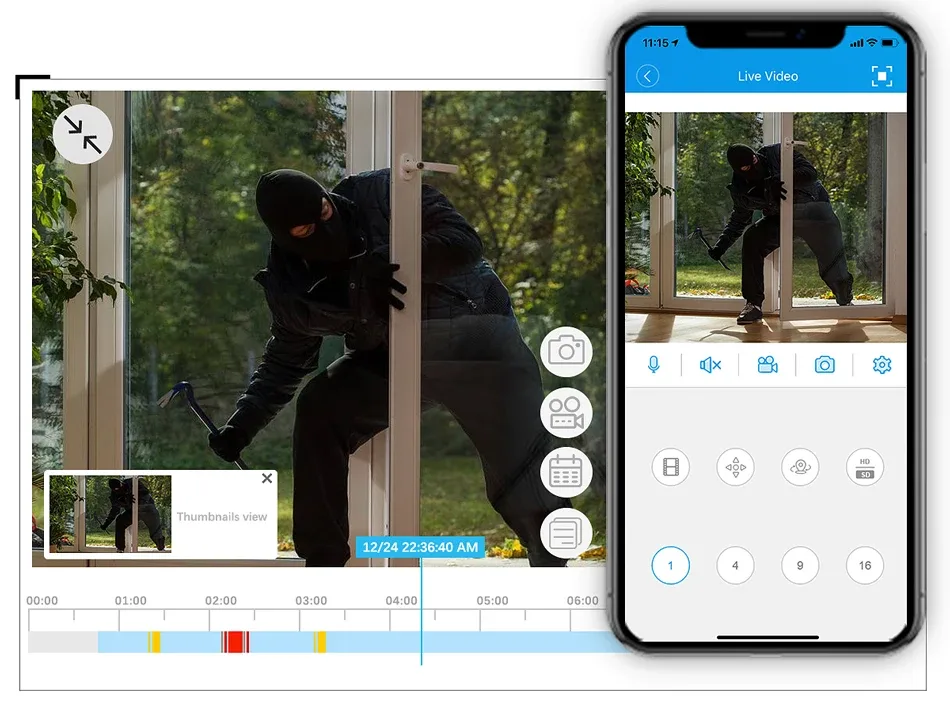

Connect the camera to a suitable PoE source and the recording network. Aim the live view at the intended position, protect the Ethernet connection and set recording on the compatible recorder. The QuarkView guides below explain the relevant installation and integration steps.
Practical guides
Setup resources and product questions
- Fixed PoE camera family manual — English (PDF) (opens a new tab)
A reference for the listed model family. Match the device label and on-screen interface before following setup steps.
- camera: XMEye Pro — Android (opens a new tab)
- camera: XMEye Pro — iOS (opens a new tab)
- QuarkView setup support (opens a new tab)
Model FAQ
Does this camera use a white floodlight at night?
The selected DM13EP listing describes infrared illumination, suited to indoor viewing without visible white lighting.
Can I talk through the camera?
A microphone is listed for recording. A built-in speaker and two-way talk are not specified.
Does 2.8mm guarantee a particular viewing angle?
No exact angle is published for this configuration. Use the selected camera view to match the room and target distance.
Discuss samples, bulk supply or OEM requirements
Start with XM-DM13EP-50-2.8 and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
