Broad frontage views
Camera
From $64.99
Starting configurationCamera base configuration
QuarkView · XM-N4D2-40W
01 / 09
Device exterior
| Camera resolution | Two 2MP sensors; 4MP combined |
|---|---|
| Connection | Wi-Fi |

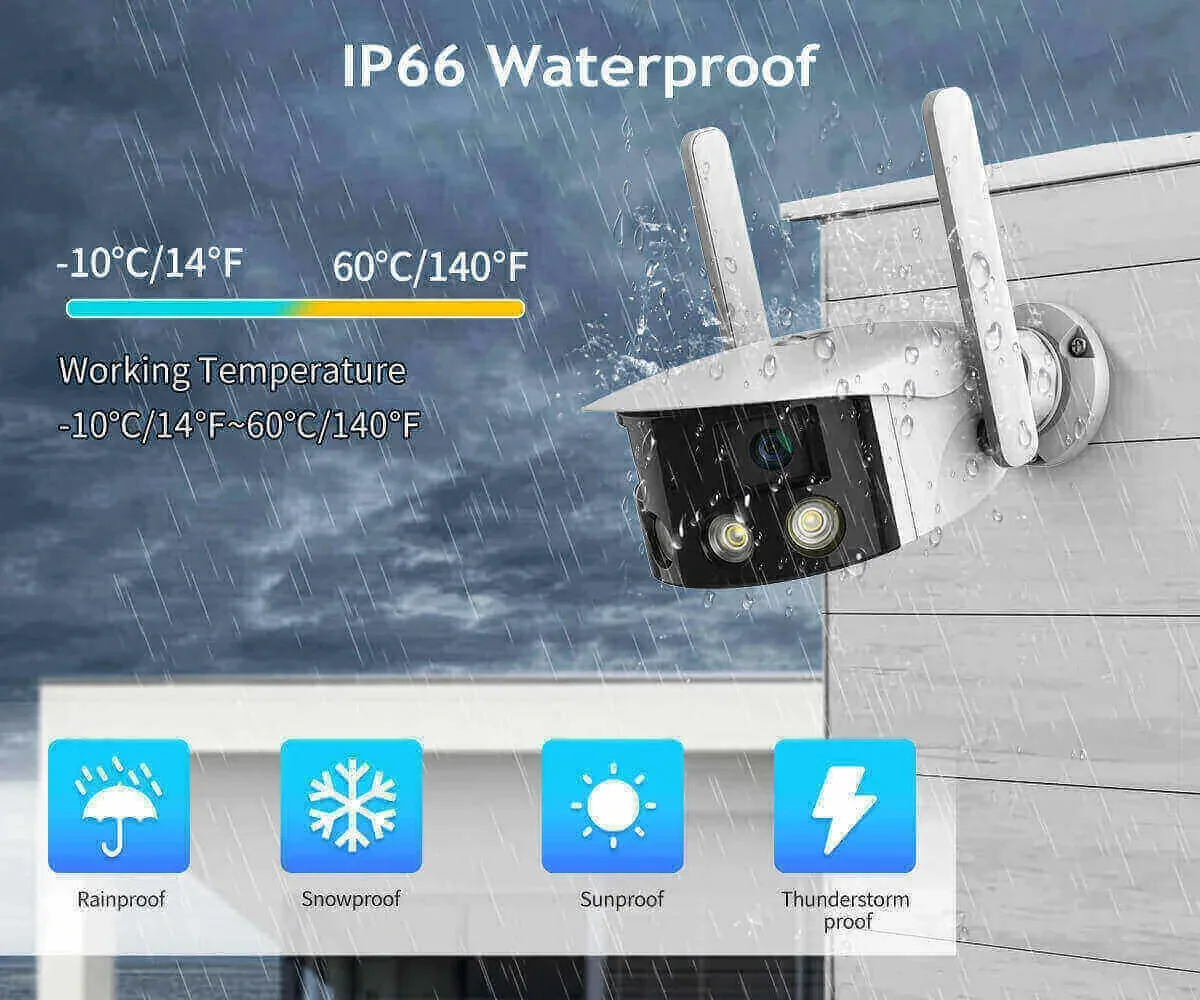

| Housing | ABS; IP66 |
| Audio | Built-in microphone and speaker |
| Lens | Two 4mm lenses |

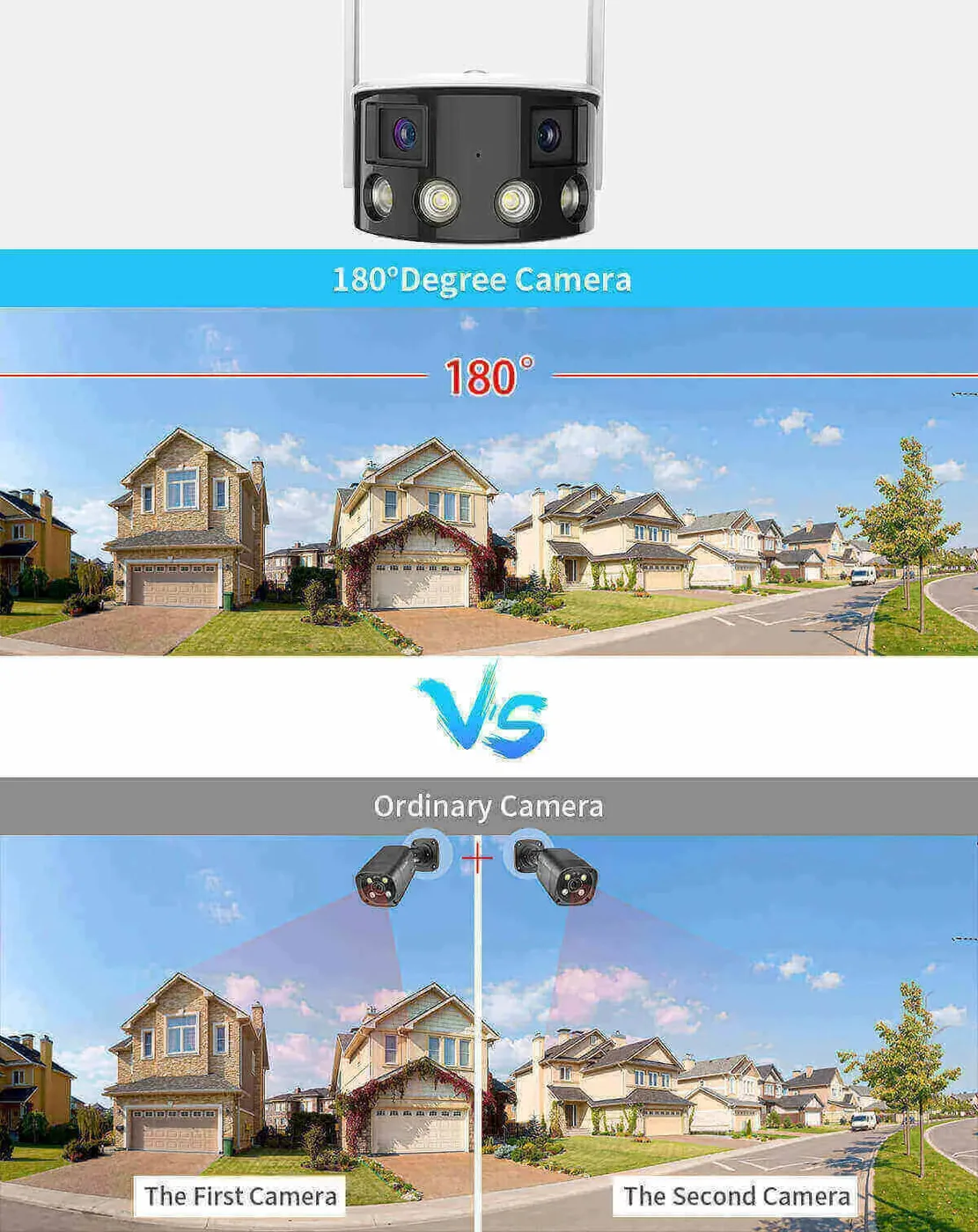

| Viewing angle | 180° |
| Recorder connection | ONVIF support; functions depend on camera/NVR combination |
| Model | XM-N4D2-40W |
|---|---|

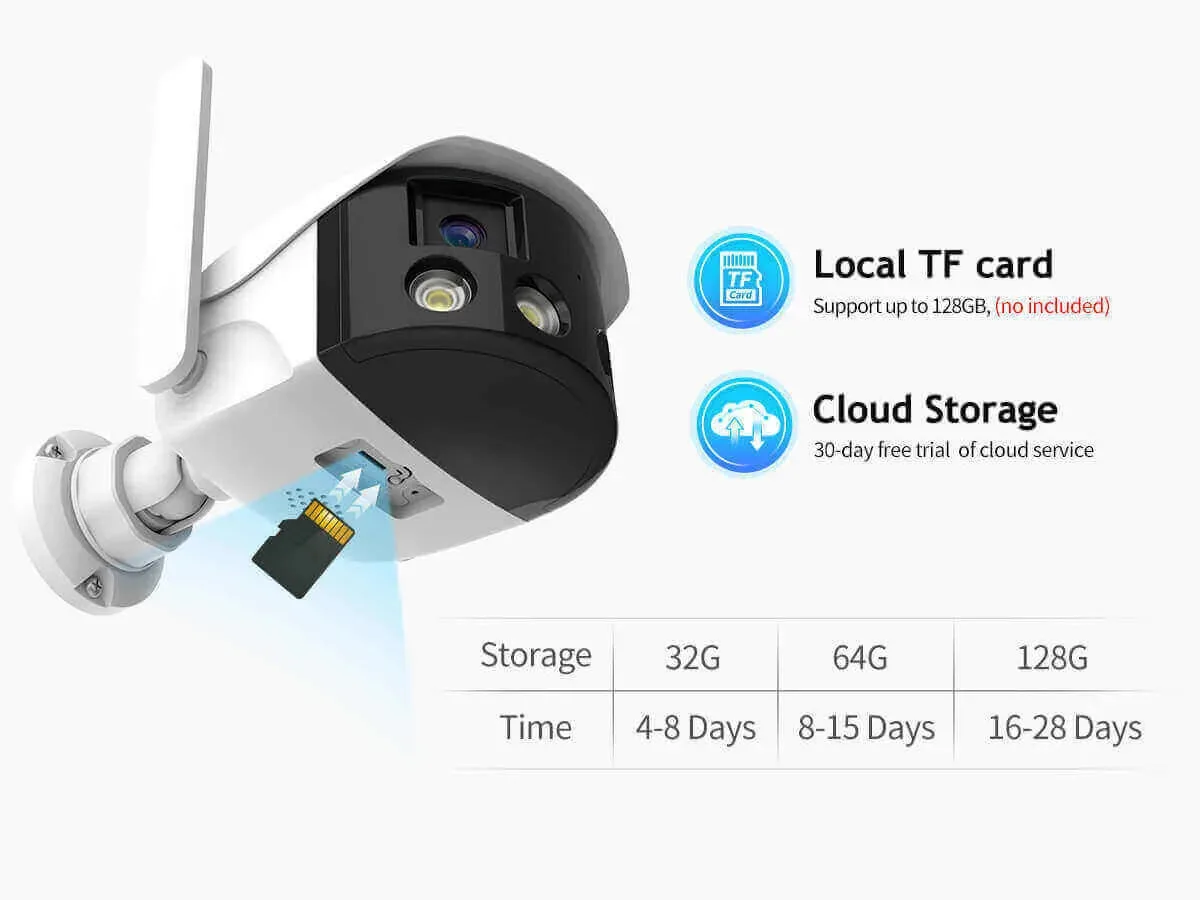

| Local storage | microSD/TF up to 128GB |
Check the wireless connection at the proposed position and test playback before fixing the mount. Use a supported microSD card up to 128GB for local footage, or review the intended NVR combination. ONVIF support does not establish every recording, audio or event function with a third-party recorder.
Keep the two lenses clear of nearby walls and light reflections. Test useful detail across the wide view and replay a saved clip. Use the supplied guide and app information for this camera revision.

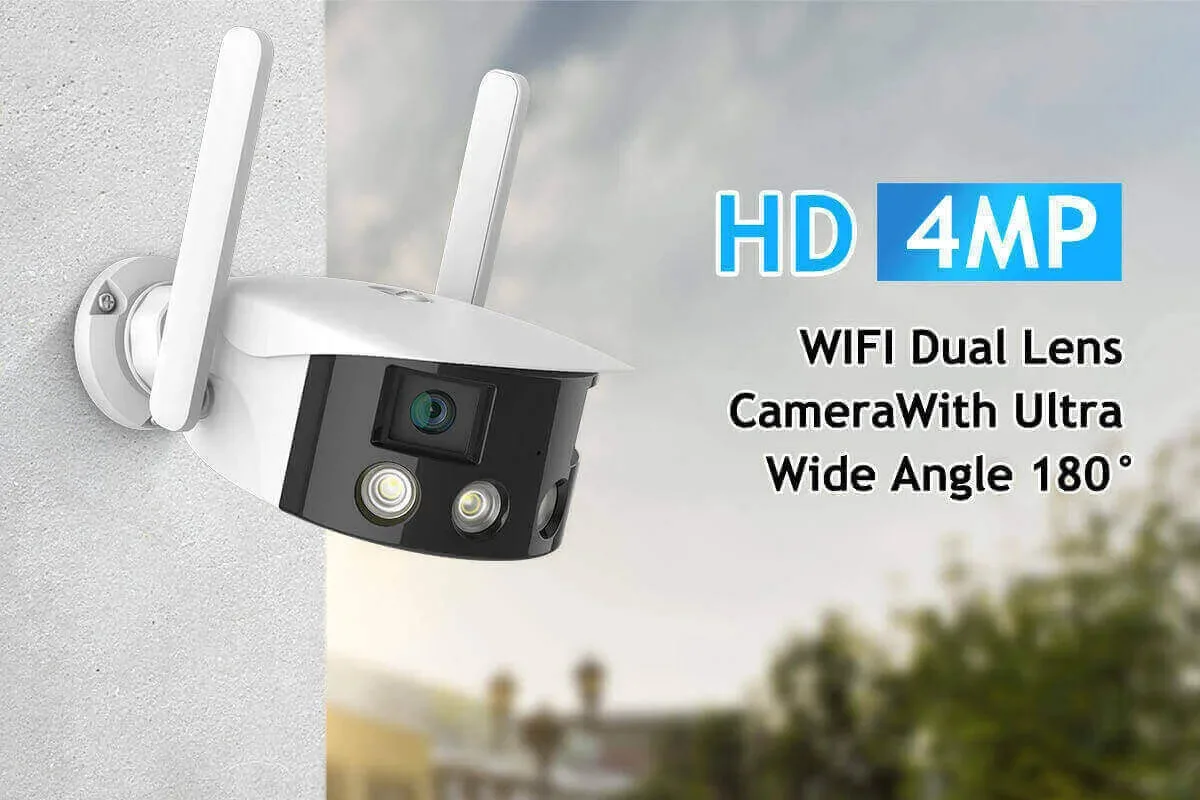

The QuarkView N4D2 gives a broad fixed view of an entrance, frontage or yard. Its two 2MP sensors and two 4mm lenses provide a 180-degree view, with human alerts, two-way audio and microSD storage.
Use the supplied power adapter and match its input requirements. The wireless network connection does not supply power.

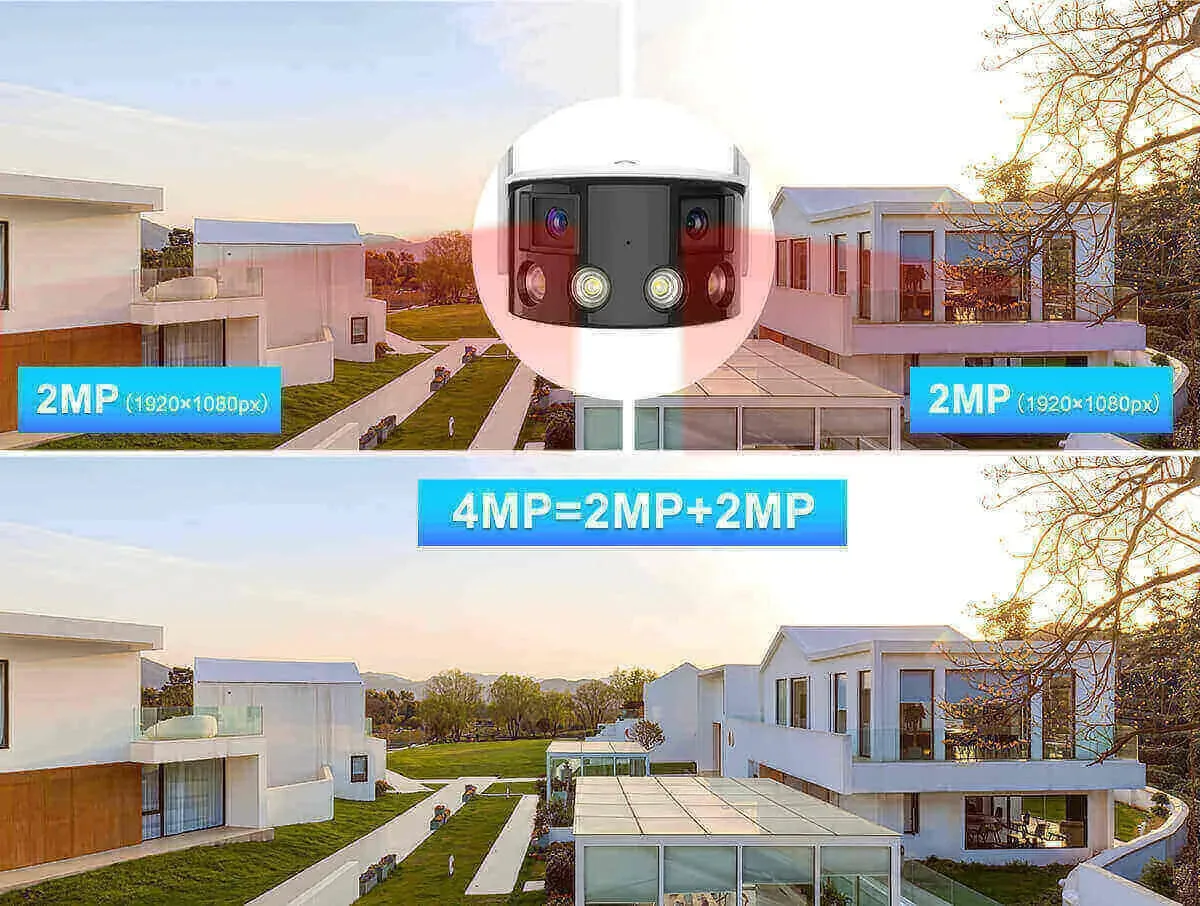

4MP is the combined resolution of two 2MP sensors. It should not be treated as the resolution of one recorded stream.

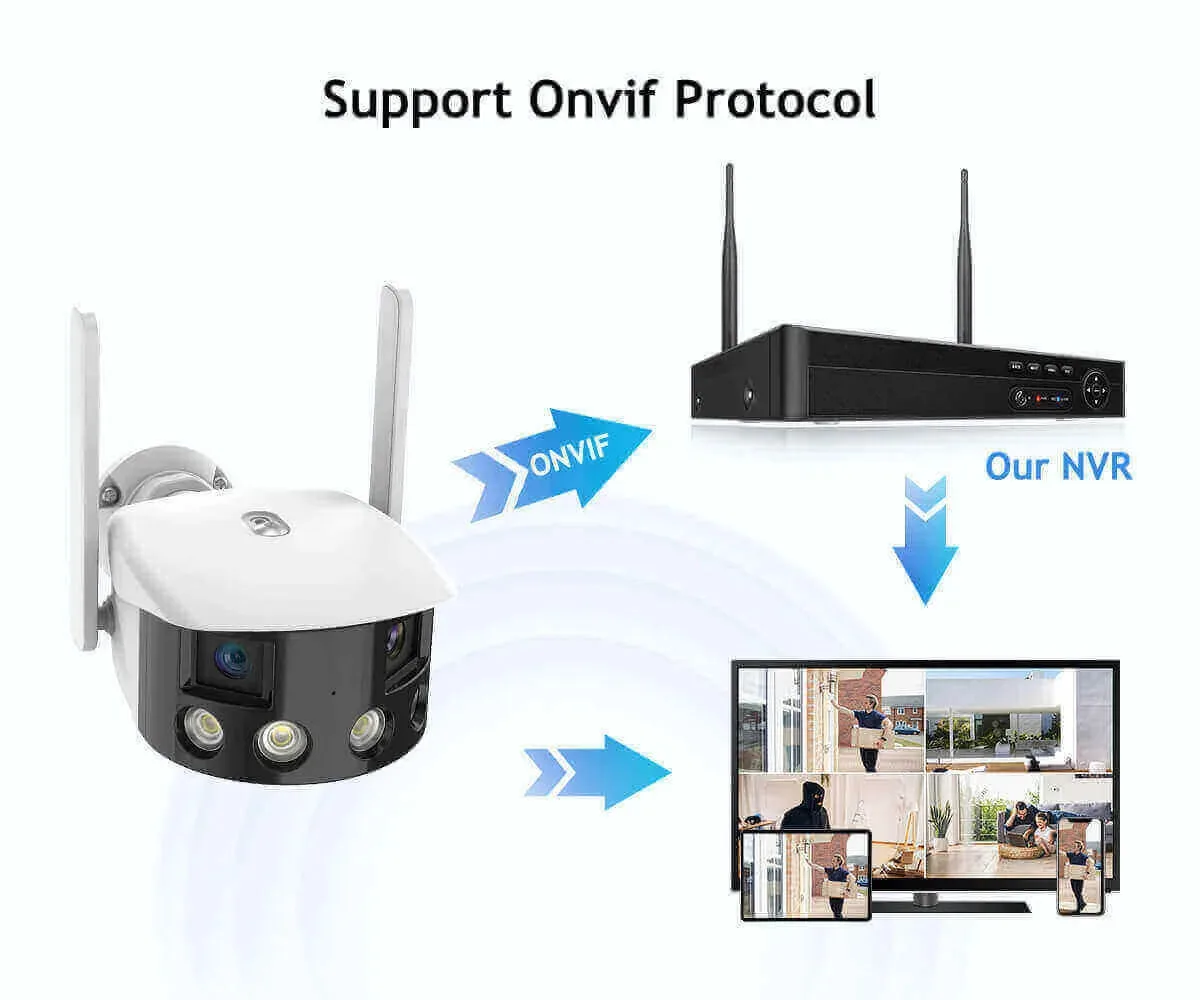

N4D2 supports ONVIF. Check video, saved audio, playback and required events with the exact recorder and firmware.
No. Choose the no-card or 64GB option. N4D2 supports microSD/TF storage up to 128GB.
Use it for overview coverage. Test the detail you need at the farthest target position; add a closer view where identification is required.
Start with XM-N4D2-40W and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
