Power and maintenance
Charge the battery before installation and leave access for later recharging. Choose the solar-panel option when useful sunlight is available. Monitor battery level through cloudy weather and periods with frequent triggers.
QuarkView BC12 3MP Battery Camera
Entrances with difficult power routes
Camera
- PIR motion alerts
- Two-way audio
- Optional solar-panel configuration
From $59
USD
Starting configurationCamera base configuration
QuarkView · JA-BC12-H30W
01 / 01
Product image pending
Specifications
| Camera resolution | 3MP |
|---|---|
| Network | 2.4GHz Wi-Fi only; no 5GHz |
| Housing | IP66 |
| Audio | Built-in microphone and speaker |

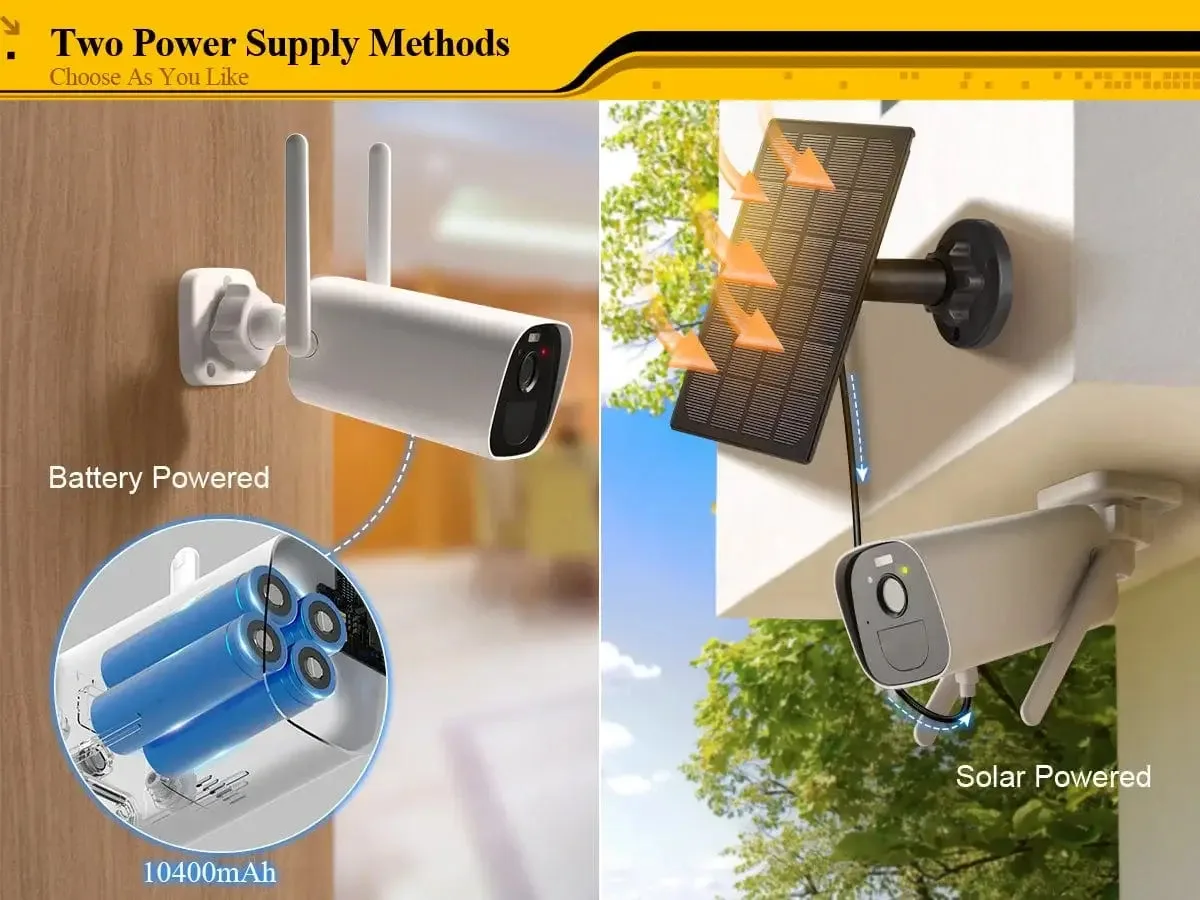

| Power | Rechargeable battery; solar-panel option |
| App | EseeCloud |
Full specifications and package contents
| Model | JA-BC12-H30W |
|---|---|

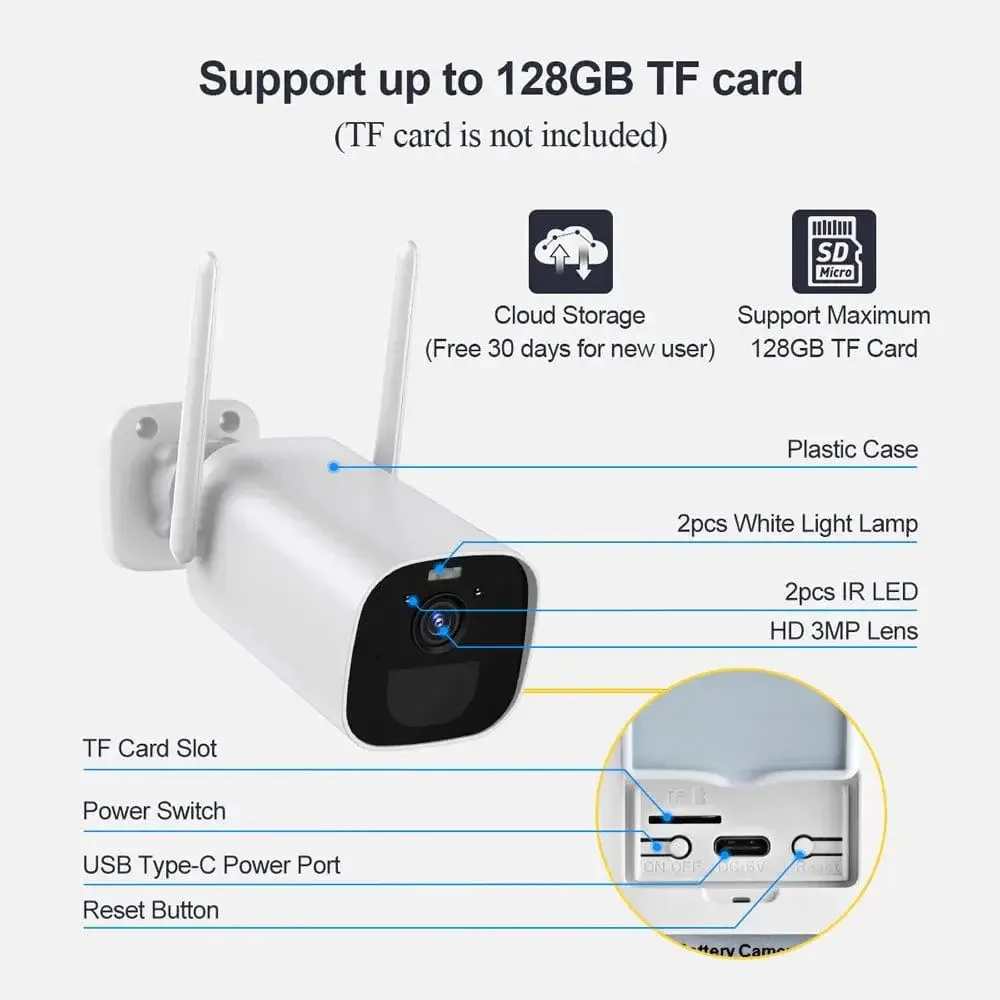

| Local storage | microSD/TF up to 128GB; card not included |
| Cloud storage | Optional service; plan terms apply |
What is included
- One BC12 camera
- Solar panel only with the camera-plus-panel option
- microSD card not included
- Charging and mounting accessories specified in the packing list
Product details
Network and recording
BC12 requires 2.4GHz Wi-Fi and EseeCloud. The product instructions exclude PC viewing and third-party apps. Plan for PIR-triggered event monitoring and power-saving sleep. Use a supported card up to 128GB or the available cloud service. Card overwrite is not a continuous 24/7 recording promise.
More product details

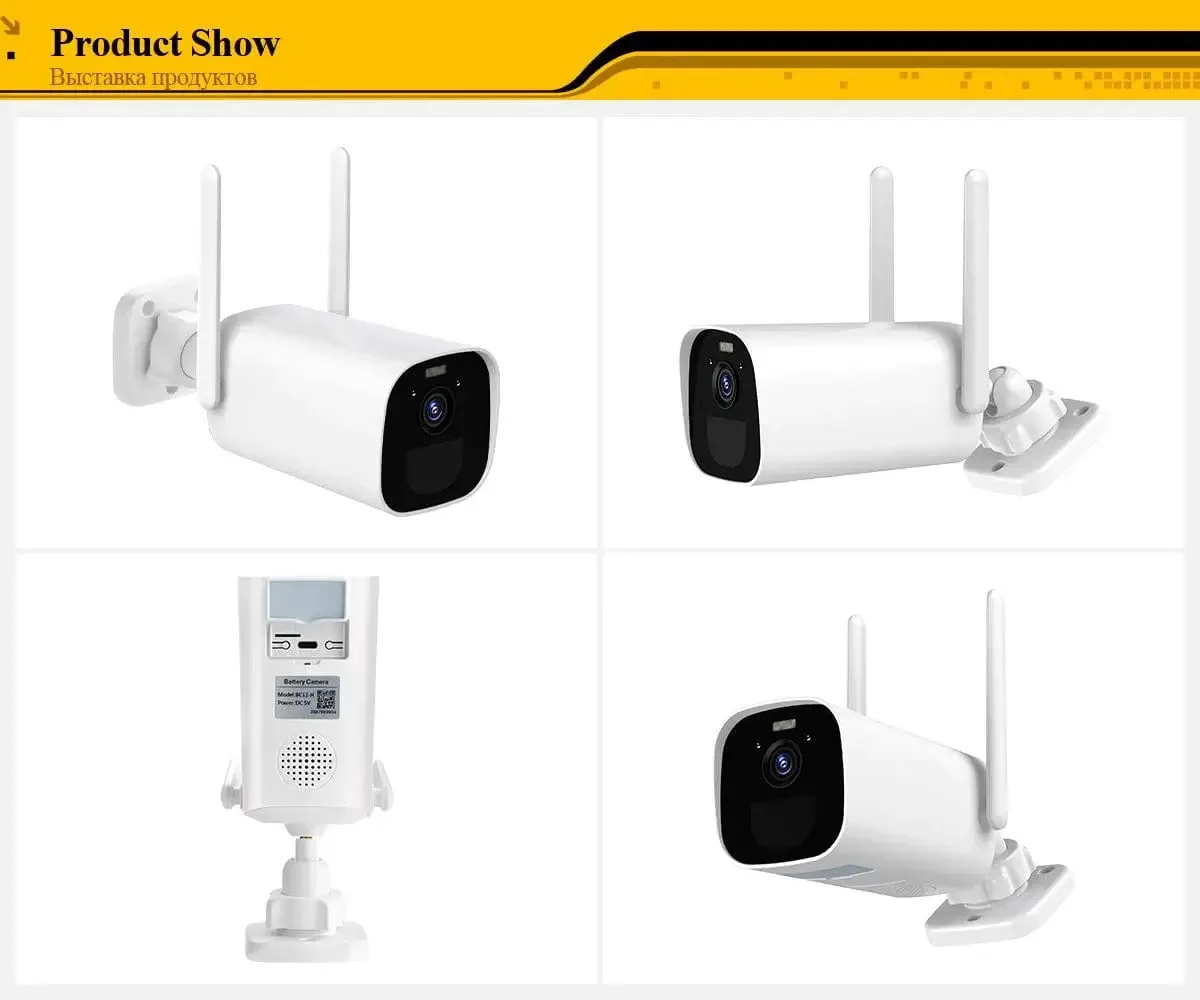

The QuarkView BC12 is a 3MP battery camera for entrances and other positions within Wi-Fi reach. It uses EseeCloud for alerts and two-way talk, with a solar-panel option and local microSD storage.
Installation and setup
Install the card before powering on, pair near the router, and test the final position before fixing the mount. Check a trigger, saved playback and battery trend. Place an optional panel away from shade.
Practical guides
Setup resources and product questions
- camera: EseeCloud — Android (opens a new tab)
- camera: EseeCloud — iOS (opens a new tab)
- QuarkView setup support (opens a new tab)
Model FAQ
Does BC12 support 5GHz Wi-Fi?
No. The product instructions specify 2.4GHz Wi-Fi only.
Can I use BC12 in a PC client or another app?
The product instructions specify EseeCloud and exclude PC viewing and third-party apps.
Is the solar panel included with camera only?
No. Select the camera-plus-panel option when you need the panel.
Can BC12 record continuously for 24 hours?
BC12 uses PIR-triggered monitoring and power-saving sleep. Choose a system with documented continuous recording when you need an uninterrupted timeline.
Discuss samples, bulk supply or OEM requirements
Start with JA-BC12-H30W and the configuration you need. Include quantity per model, delivery destination, target timing and any sample or documentation requirements.
Sample terms, minimum order quantity, customization scope, compatibility and lead time need confirmation for this model and configuration. Use the purchase options above for an available individual purchase.
